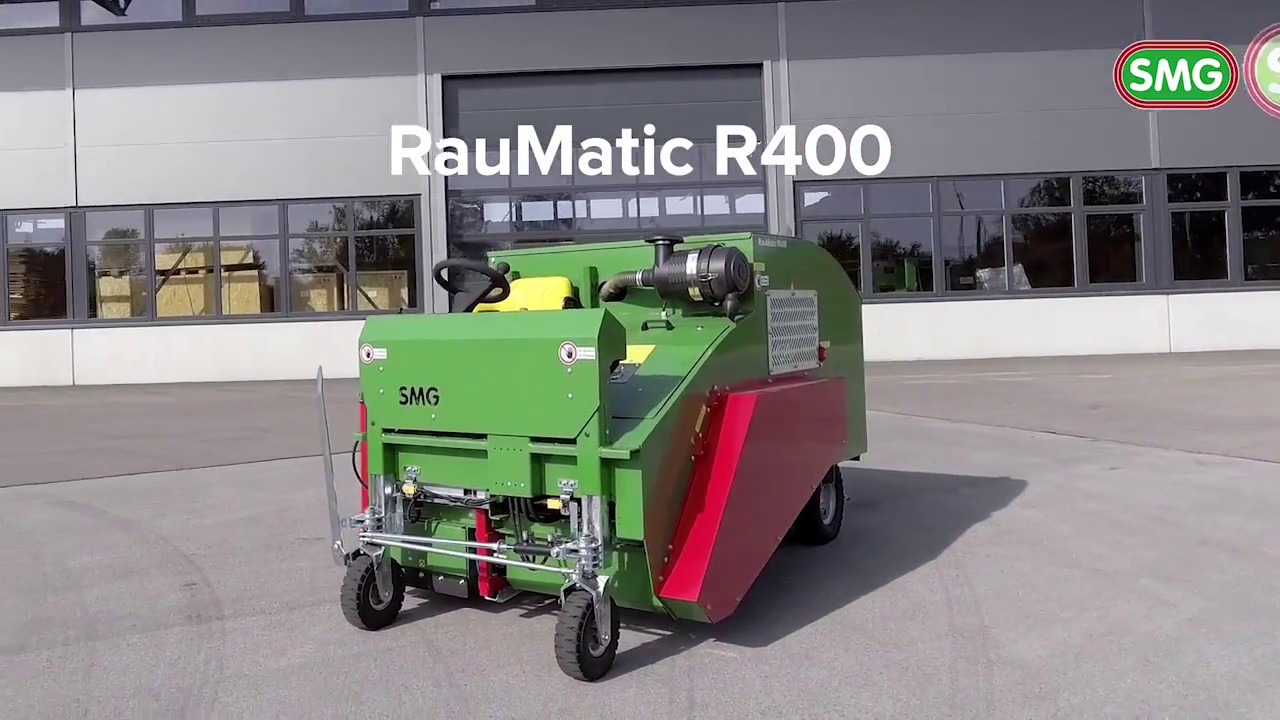

RauMatic R400D
RauMatic - Redevelopment
6230346
Milling machine for synthetic sports surfaces.
Removal depth max. 10 mm.

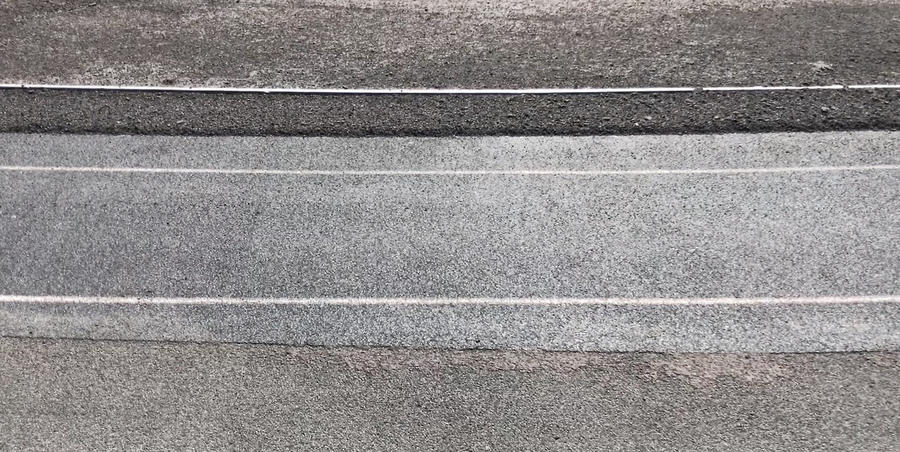

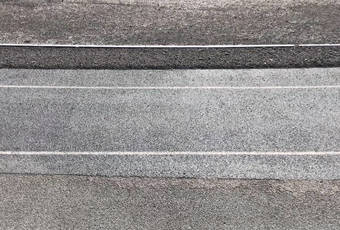

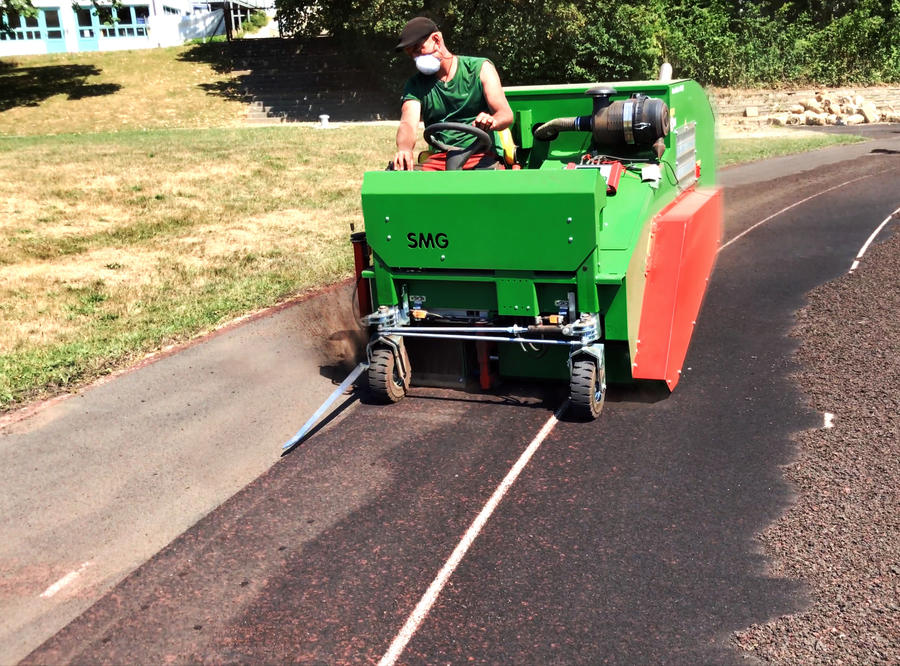

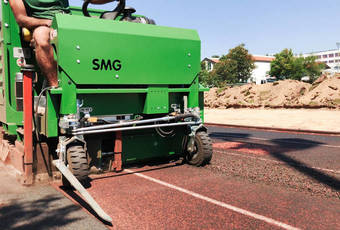

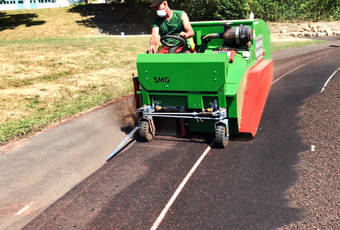

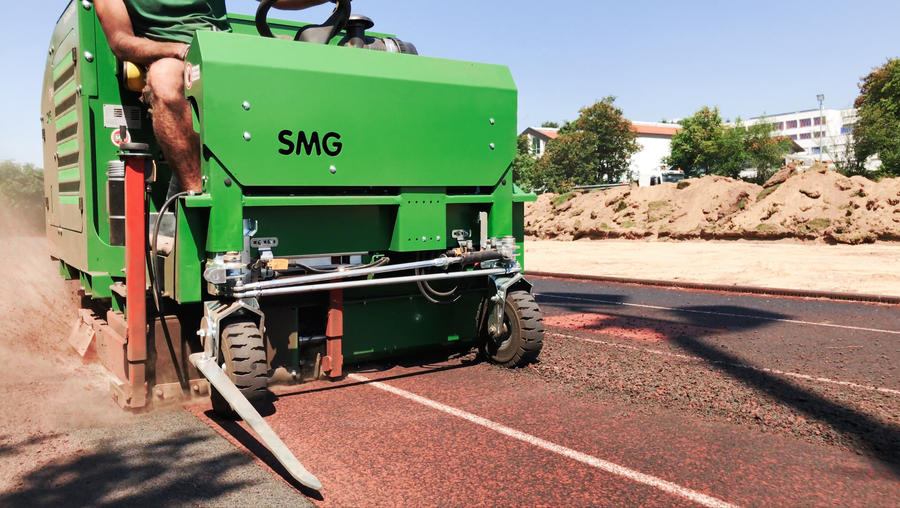

The renovation of sports surfaces through abrasion of the surface layer and subsequent re-coating is becoming ever more important as an alternative to a complete new installation. Reason being that it cuts down the cost to a great extent and saves considerable amount of materials. The original thickness and the technical characteristics of the rubber will remain the same. The RauMatic R400 is a milling machine for milling of the surface coating from elastic PU sports surfaces.

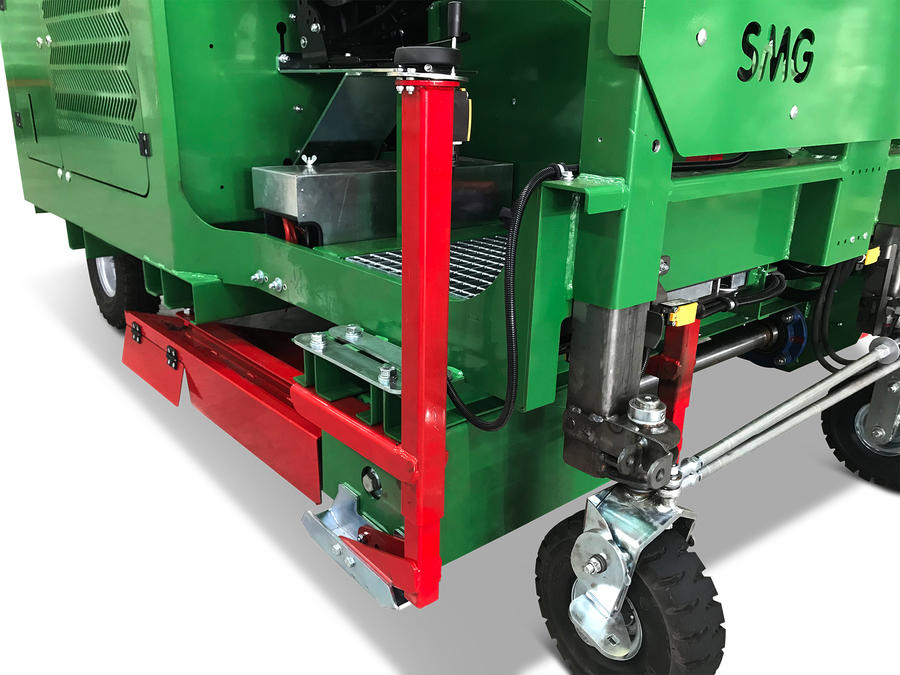

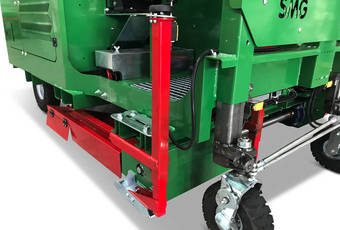

Integrated height levelling for evenly flat installation.

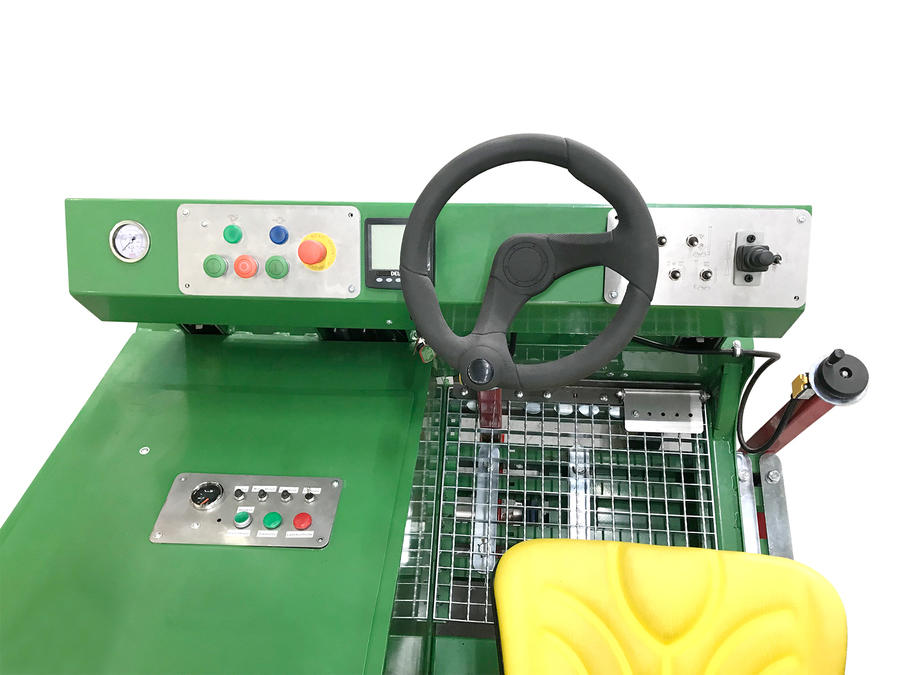

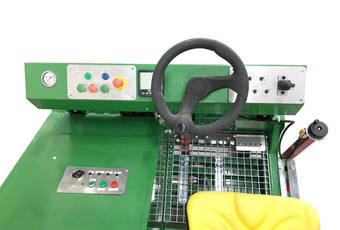

Driving seat with clearly arranged control elements.

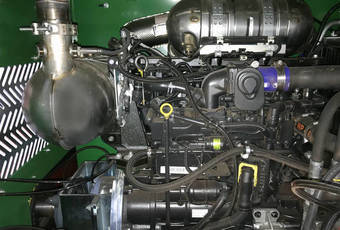

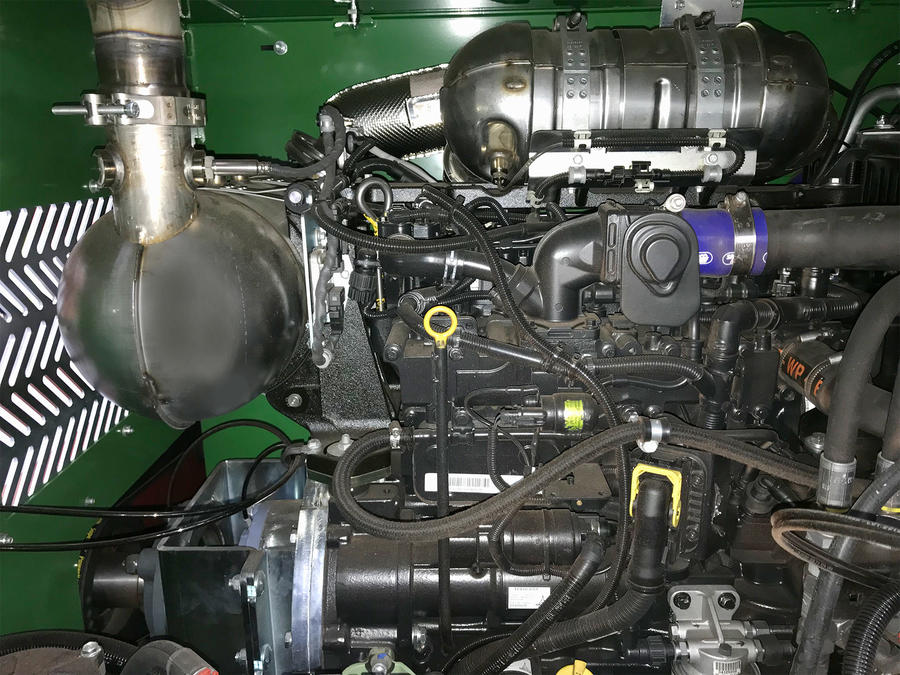

Powerful diesel enginge with 100 kW (135,9 HP).
Technical information:
Drive | water-cooled 4-cylinder diesel engine
|
---|---|
Working width | 400 mm |
Material removal (milling depth) | 10 mm |
Area performance | 440 m²/h (4 mm milling depth) |
Weight | 2,055 kg |
Dimensions | L 2,855 x W 1,635 x H 1,670 mm |
Shipping dimensions | L 3,100 x W 1,800 x H 2,170 mm |
Subject to technical changes
