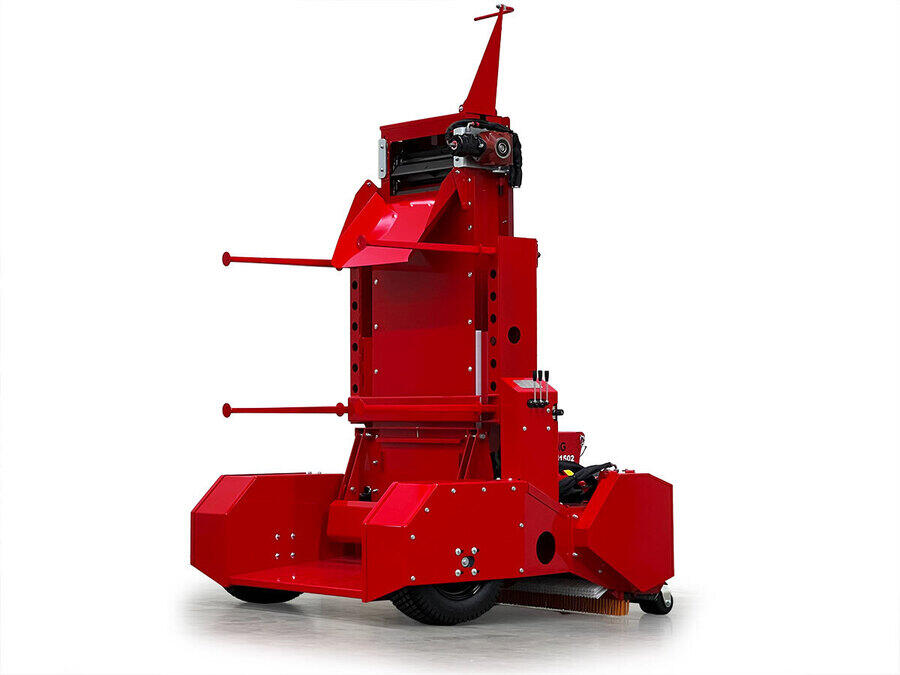

RenoMatic RM1502
RenoMatic - Recycling
6211944

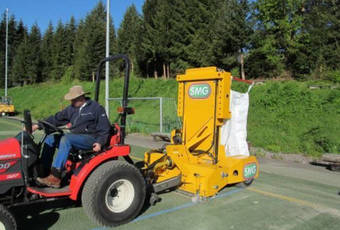

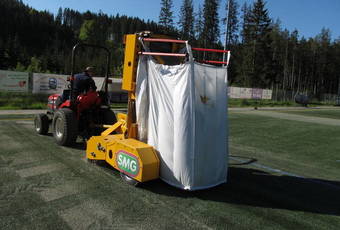

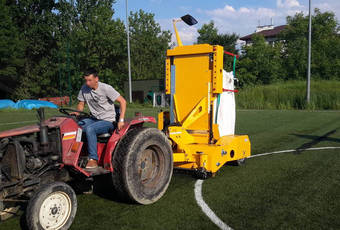

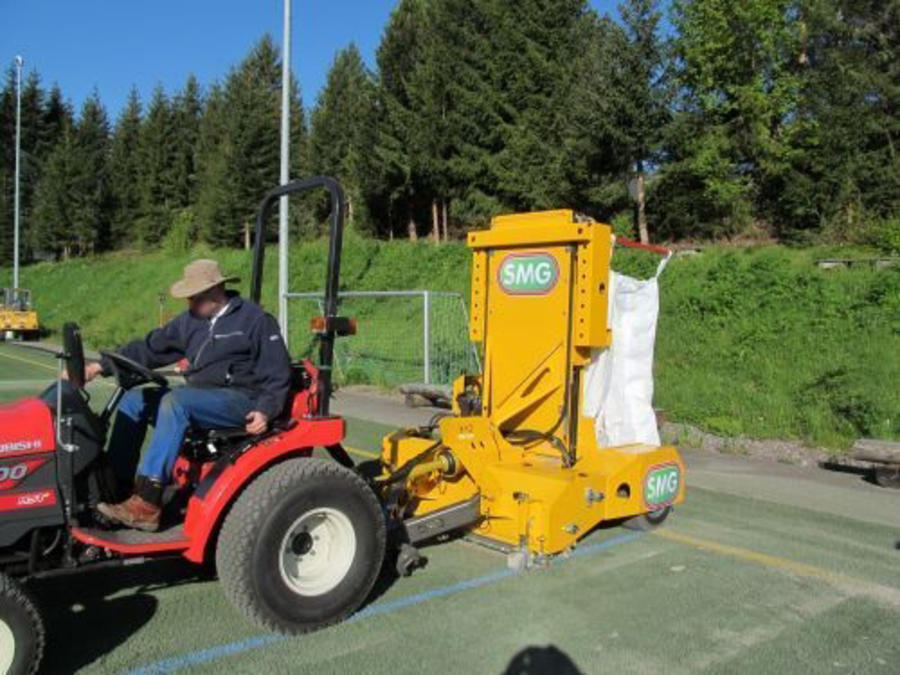

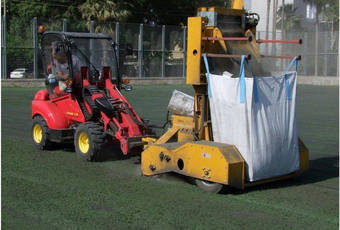

Tractor device for the removal of filling material from artificial turf.
Working width 1,500 mm.

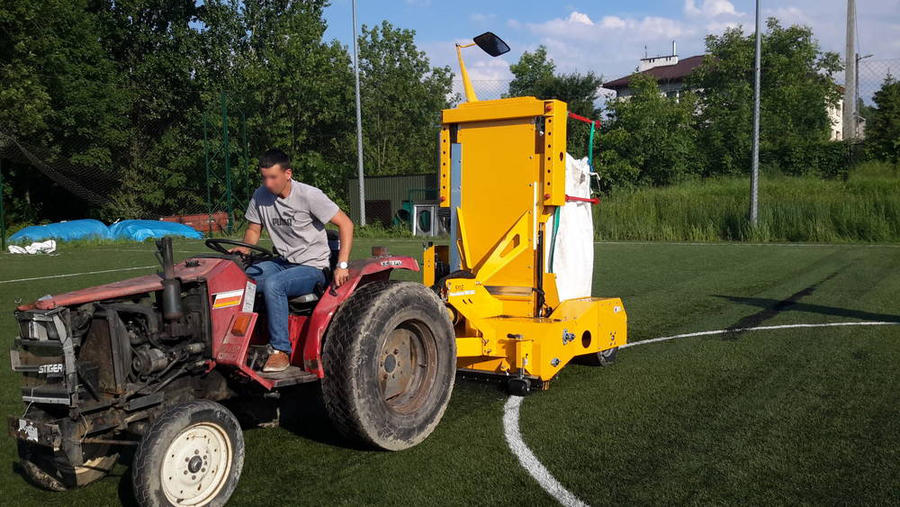

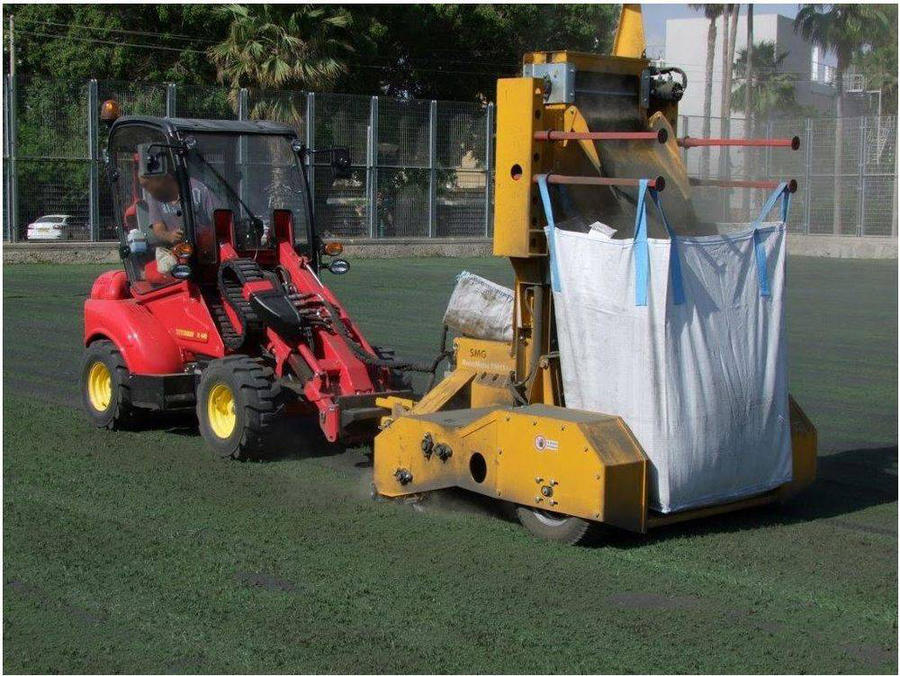

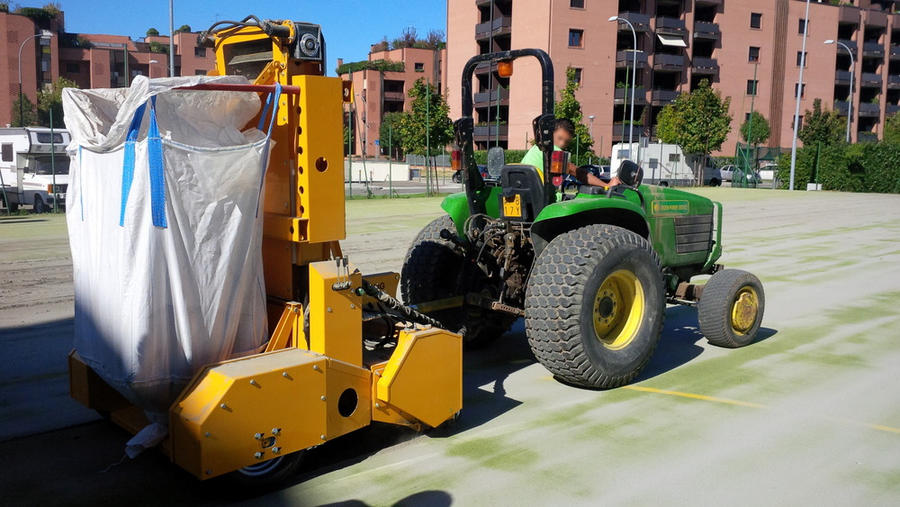

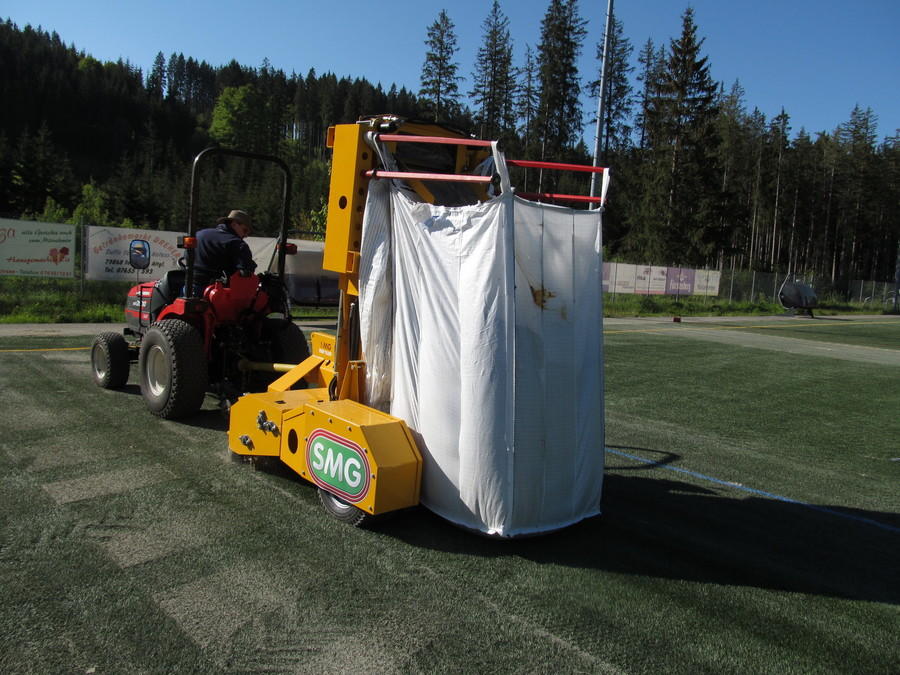

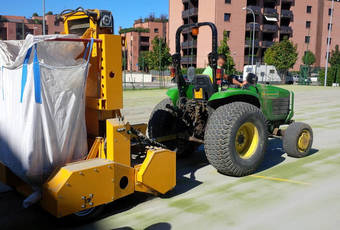

RenoMatic RM1502 is designed to remove sand, rubber granules or organic infill materials from artificial turf surfaces efficiently and precisely. The RenoMatic RM1502 is attached to the tractor via a drawbar and powered by the PTO shaft. The tractor’s hydraulic supply takes over the drive of the vertical loader and the hydraulic lifting and placement of the big bags. Working width is 1,500mm. The brush roller made up of 6 individual brush strips is held in the "brushrevolver". This means that brush strips with different trimming and hardness can be combined as desired and adjusted optimally to the artificial turf and infill material using the adjustment spindles.
Requirements for using the RM1502:
Operation requires a tractor with at least 25 kW (34 HP) drive power and also a 3-point hydraulic hitch. We recommend a continuously variable hydrostatic transmission drive or crawling gear. The PTO must be at 540 rpm.
The hydraulic connection requires a capacity of 20 - 30 litres at about 100 bars per minute.

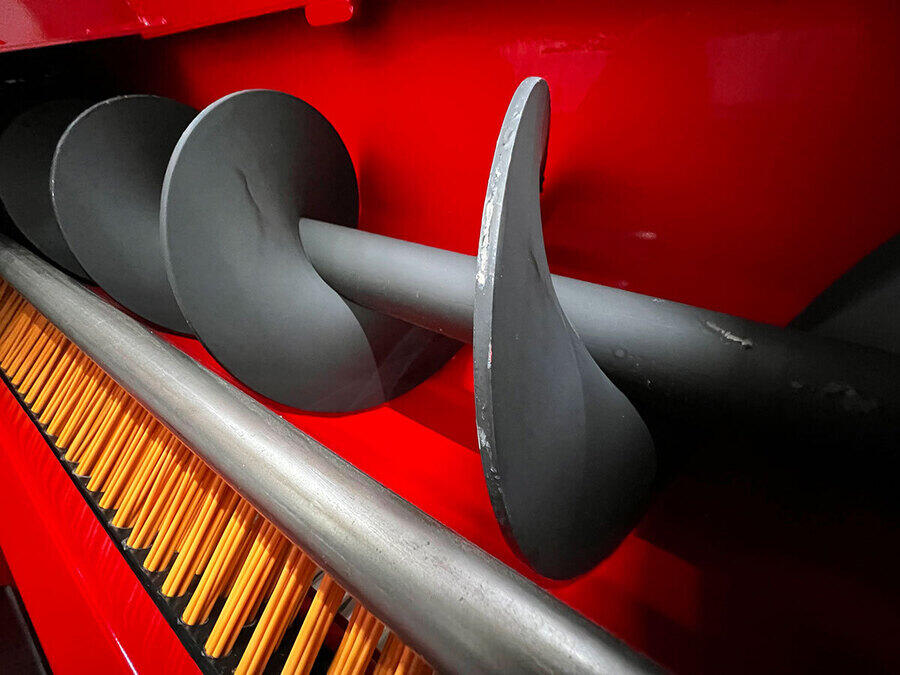

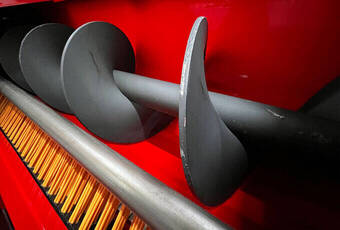

Large-sized transport screws for high conveying performance.

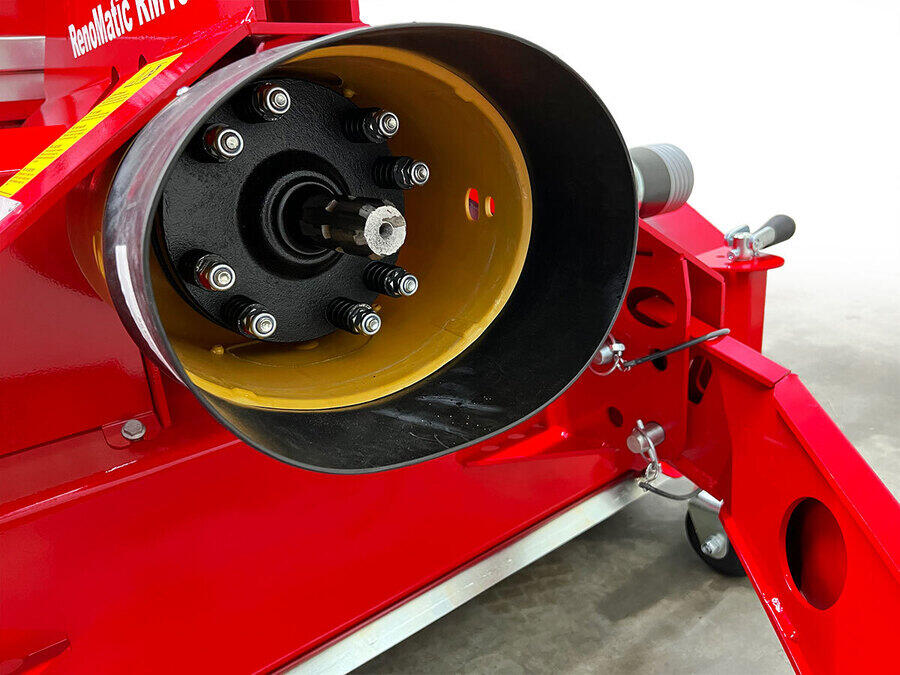

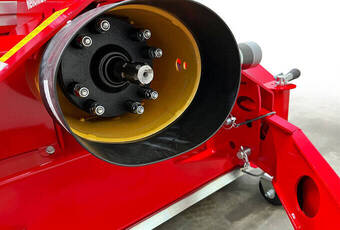

Overload clutch between tractor and RM1502.

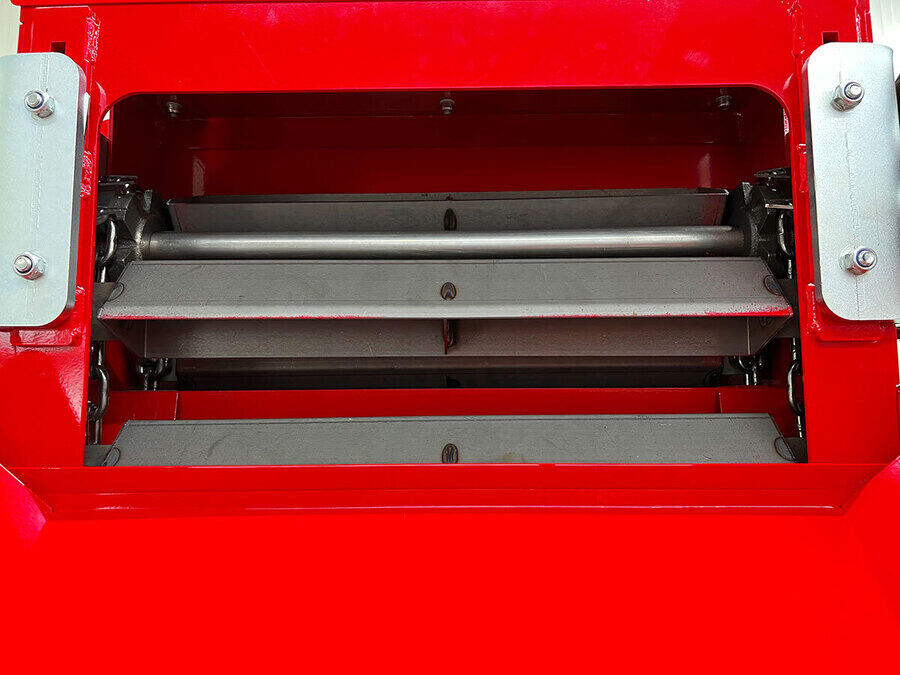

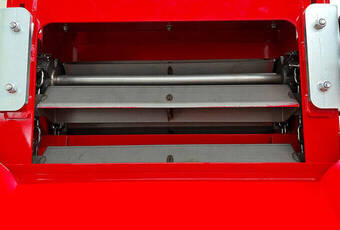

Vertical conveyor with bucket elevator.

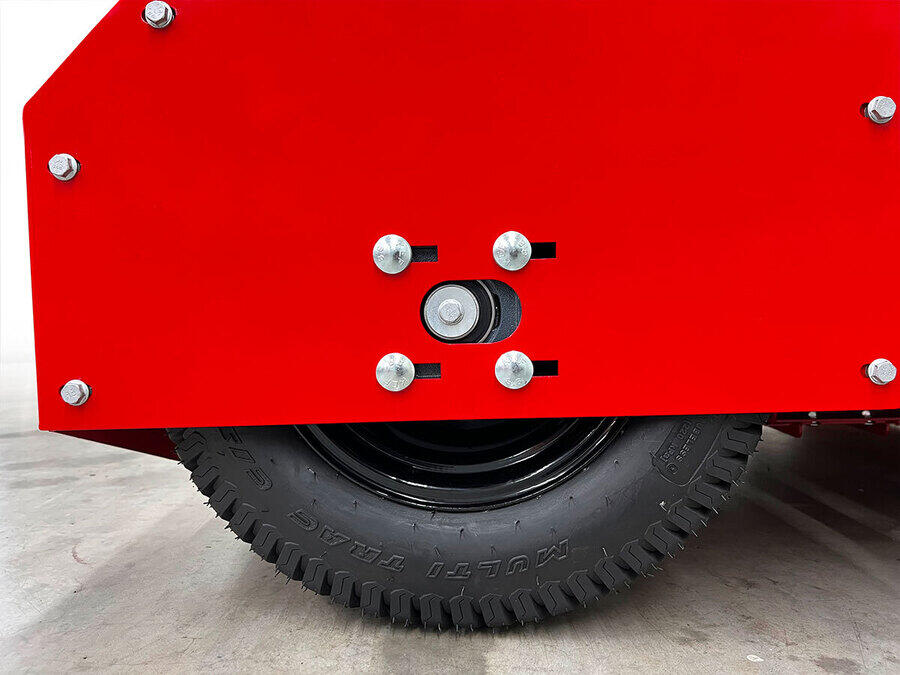

Turf tires for minimal surface pressure.

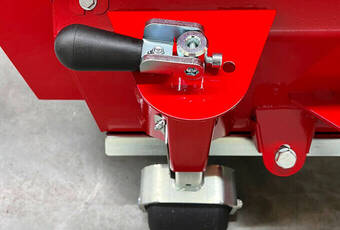

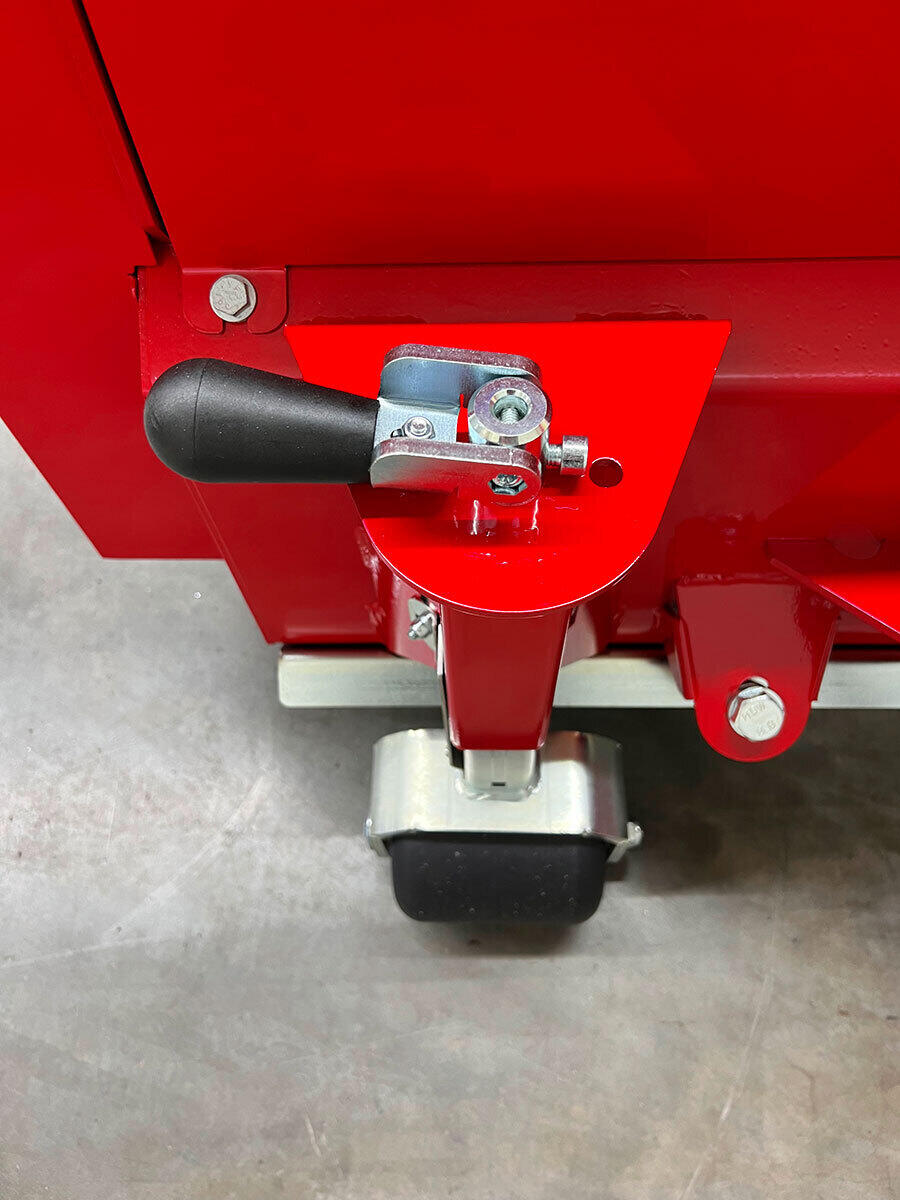

Adjustment spindles for exact working depth.

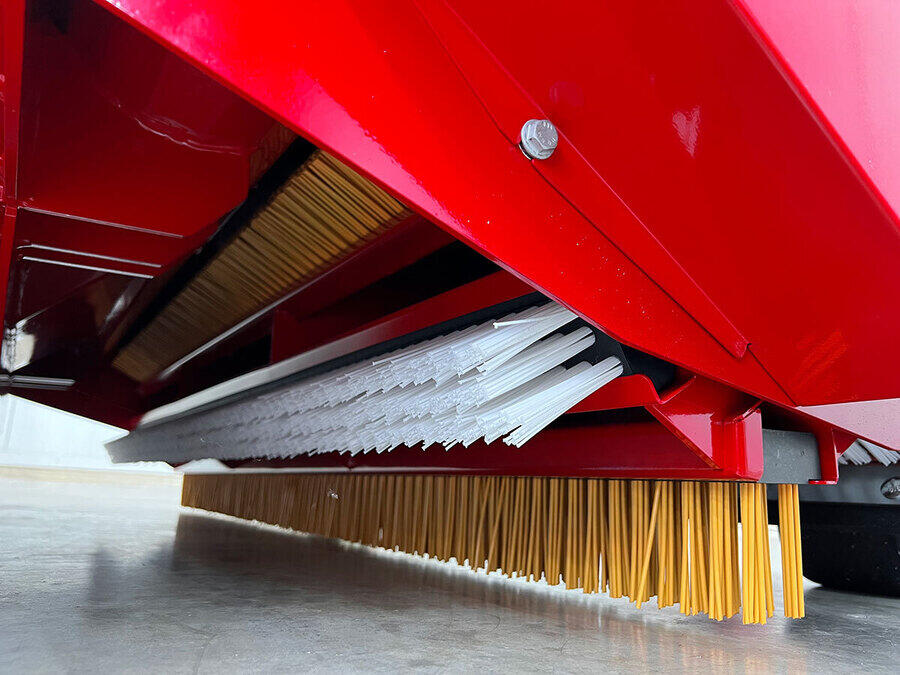

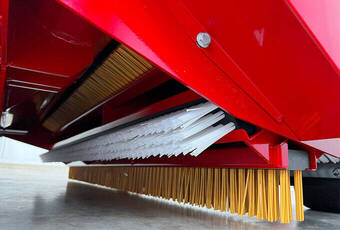

Brush revolver for different brush settings and changing the brushes in seconds.

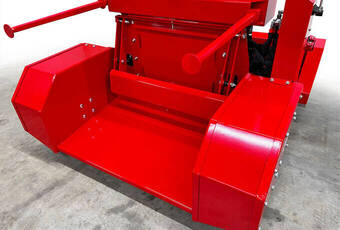

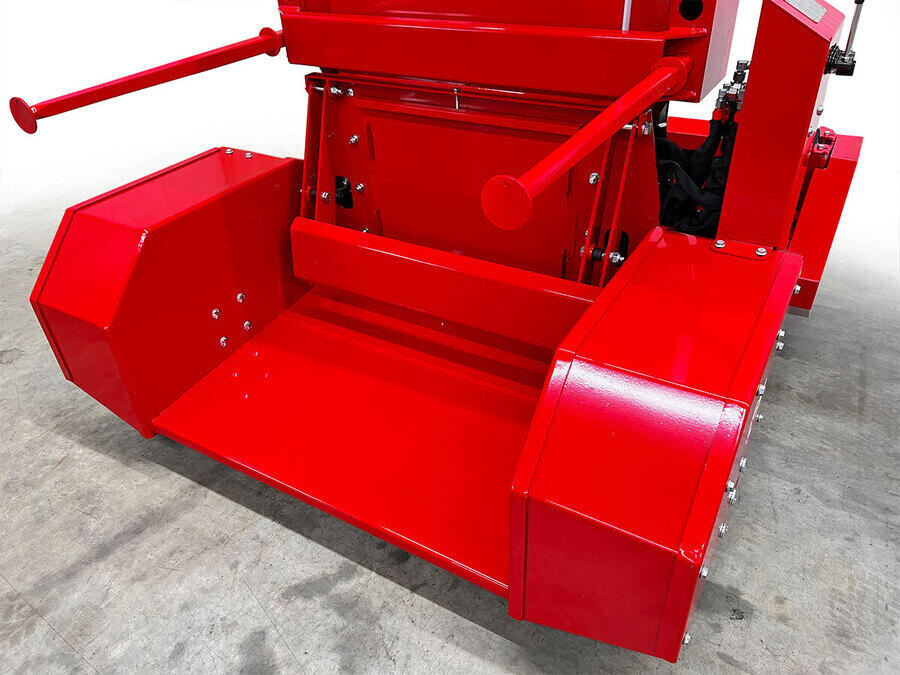

Big bag recording (hanger) allows 1 man operation.

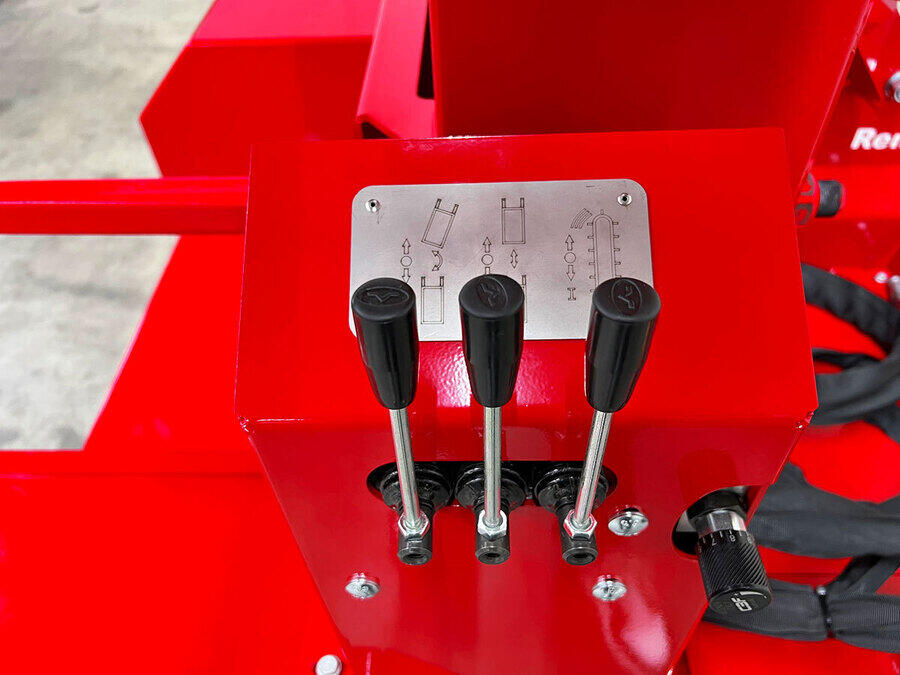

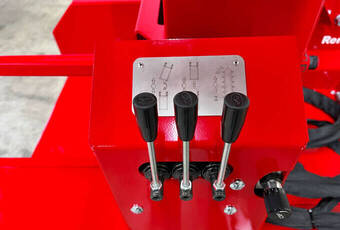

Central controls
Technical information:
Working width | 1,500 mm |
---|---|
Removal quantity per pass | 20 kg/m² |
Working speed | 5 m/min |
Performance | 400 m²/h |
Drive | PTO and hydraulic |
Weight | 1,150 kg |
Dimensions | L 1,850 x W 1,690 x H 2,395 mm |
Shipping dimensions | L 2,000 x W 1,800 x H 100 mm |
Subject to technical changes
