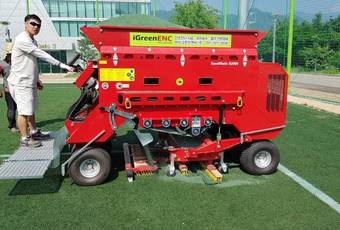

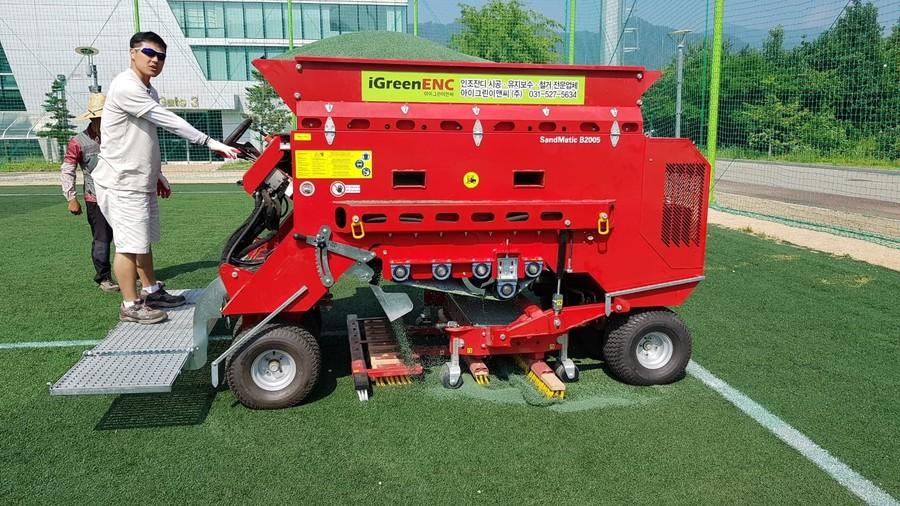

SandMatic B2005
SandMatic - Filling
6218862

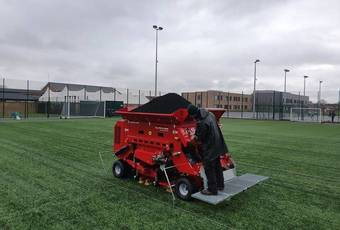

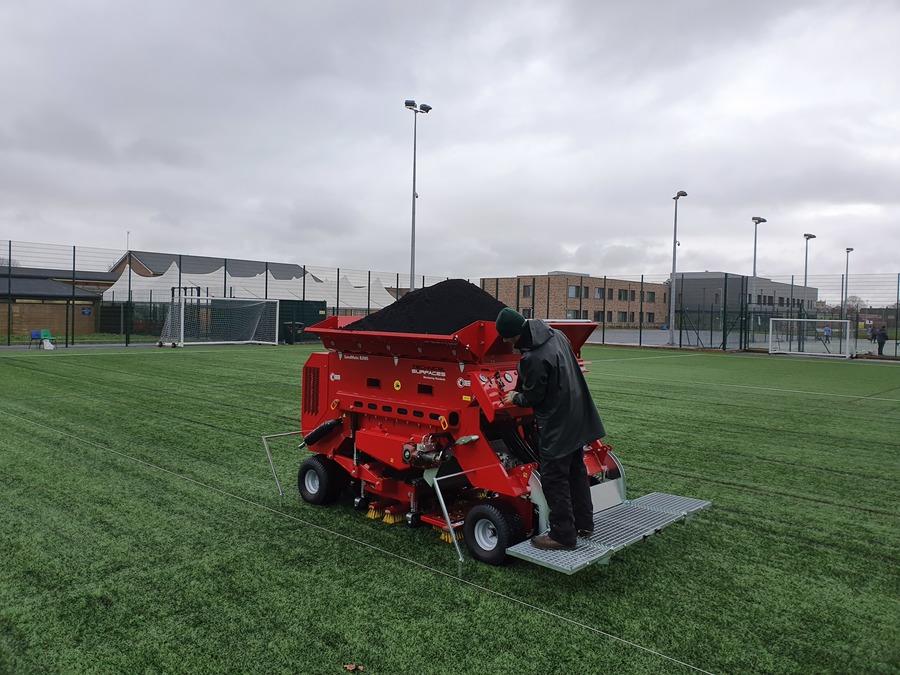

Ride-on machine for the filling of artificial turf.
Capacity 1,600 kg, working width 1,370 mm.

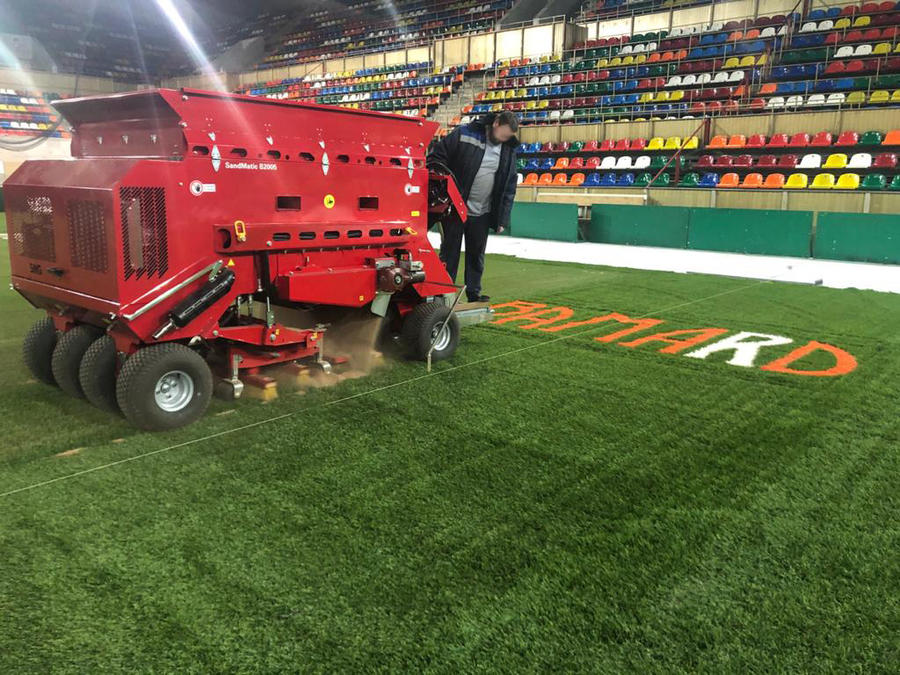

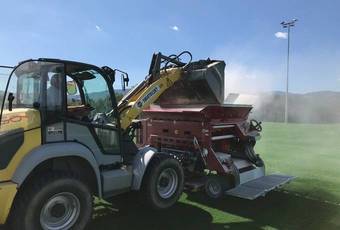

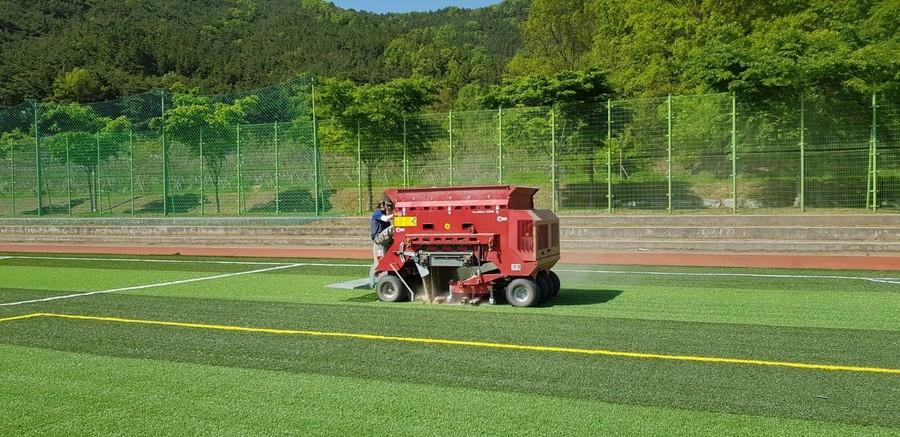

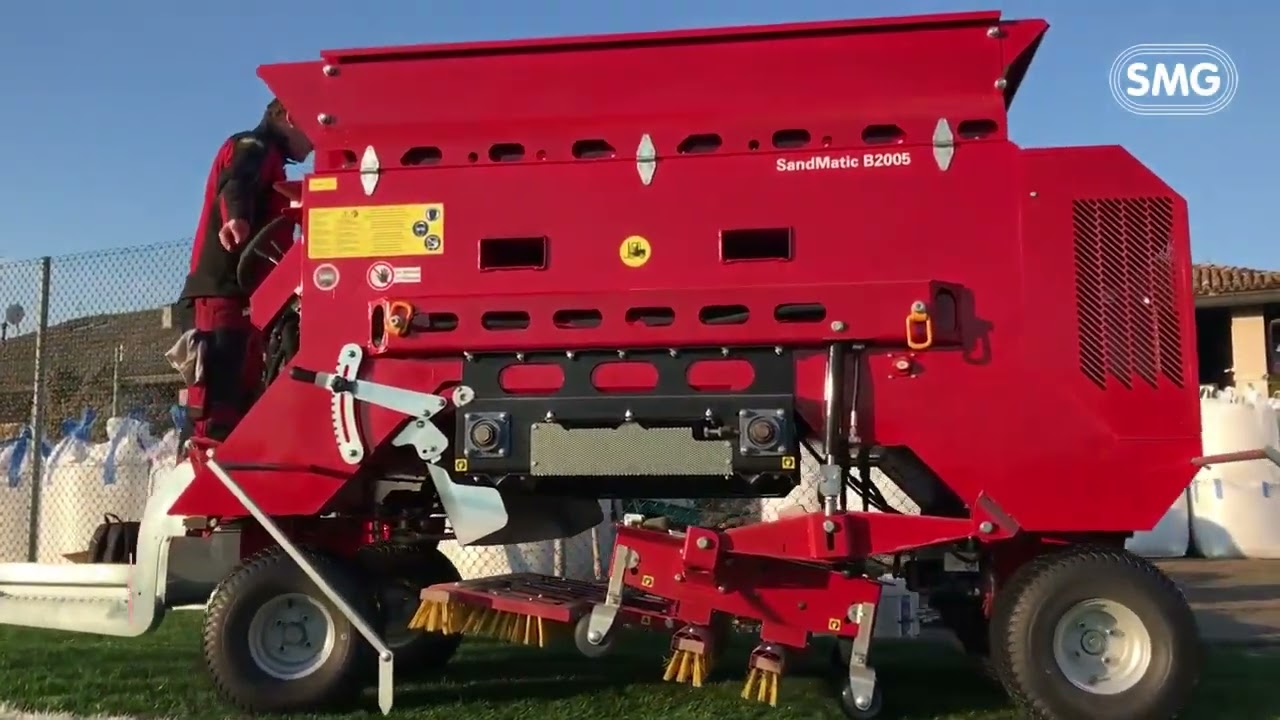

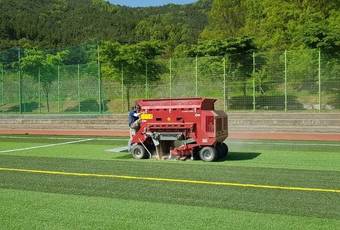

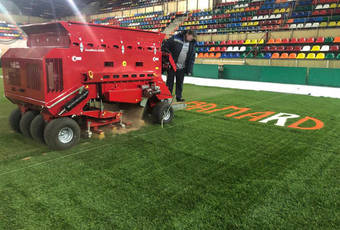

The self-driven SandMatic B2005 spreads and infills artificial turf surfaces with sand, rubber and organic infill material using its innovative brush technology and conveyor belt. The SandMatic-Series enables precise infilling from 2,5 to 40 kg/m² in both directions. With a working width of 1.500 mm and driving speeds from 1 m/min up to 25 m/min the SandMatic B2005 achieves an area performance of up to 35 m²/min.

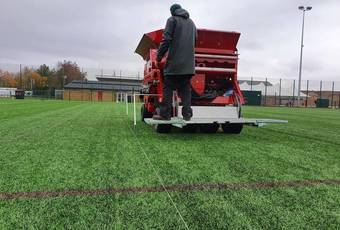

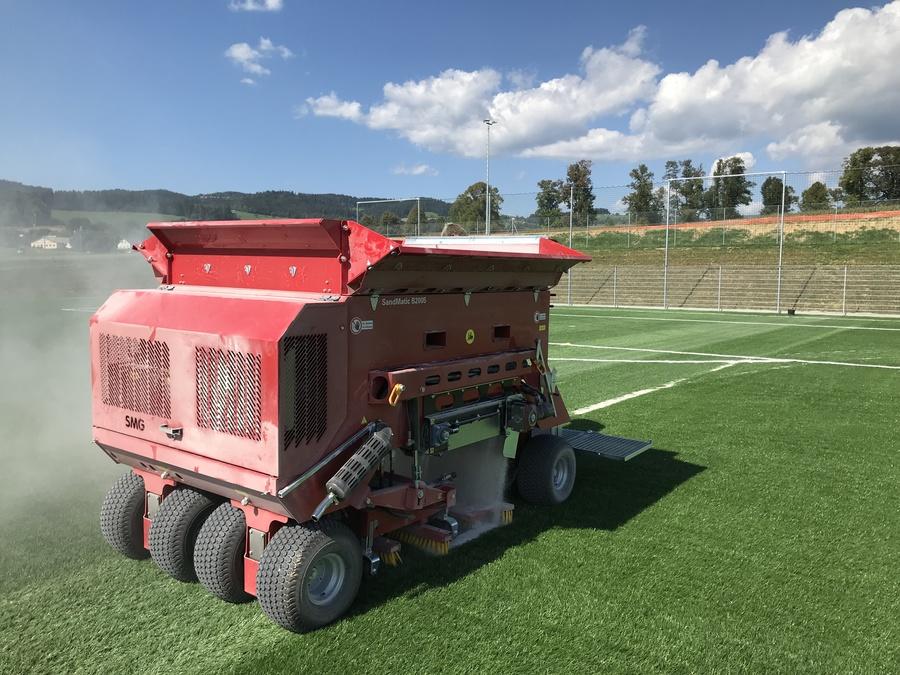

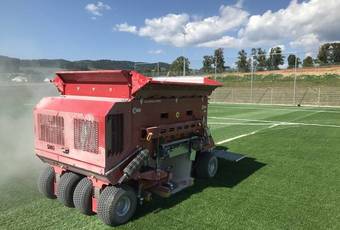

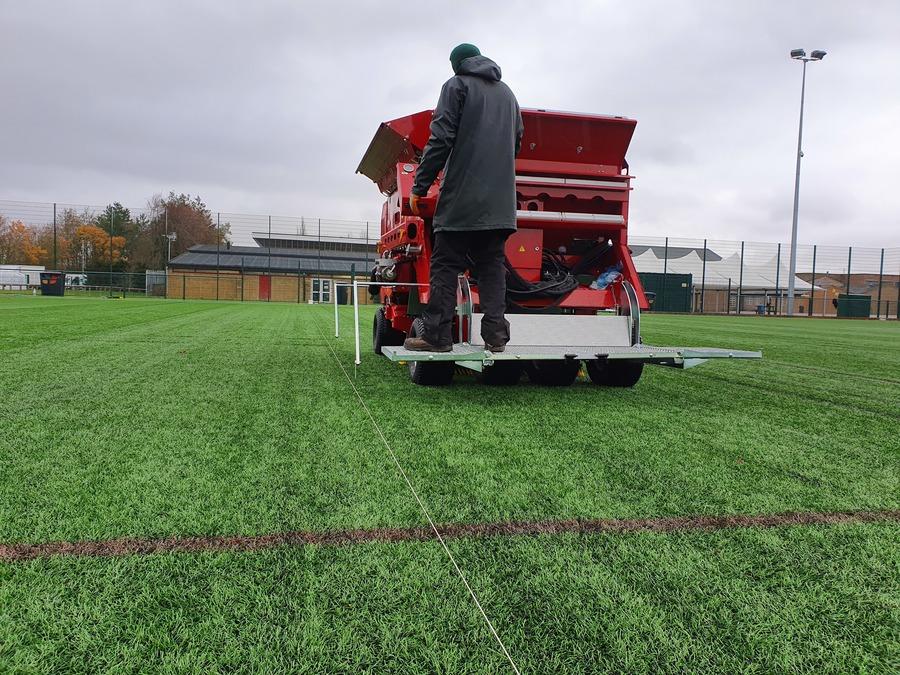

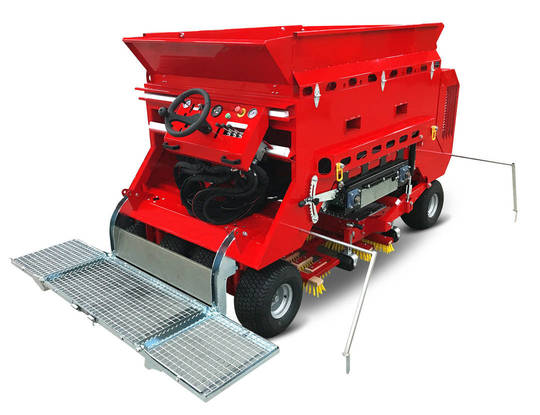

The control panel can be moved from left to right, thereby maximizing overview and ergonomics. The machine is driven hydraulically by a 16,1 kW (21,9 HP) 3-cylinder Kubota diesel engine. The weight is evenly distributed to 8 large dimensioned low pressure tires. Thus, the area pressure of the gross weight of the machine is adjusted to the turfs permissible ground pressure.
Technical information:
Spreading width | 1.370 mm |
---|---|
Max. filling weight / Container volume | 1.600 kg |
Spreading performance | 2,5 - 40 kg/m² |
Drive | 3-Zylinder-Kubota-Dieselmotor / 16,1 kW (21,9 HP) |
Weight | 1.700 kg |
Dimensions | L 3,500 x W 1,850 x H 1,860 mm |
Shipping dimensions | L 3,300 x W 2,000 x H 2,000 mm |
Subject to technical changes
