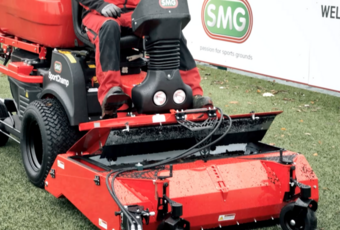

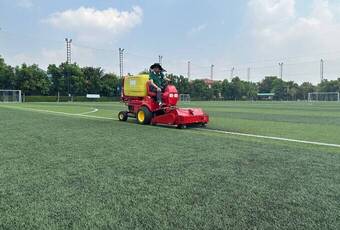

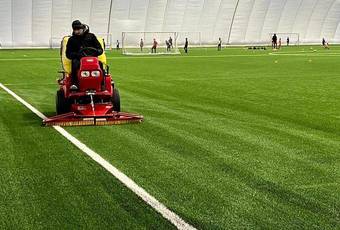

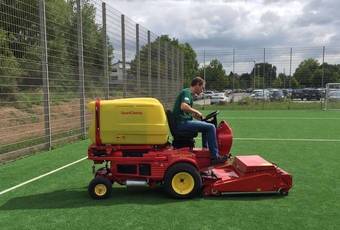

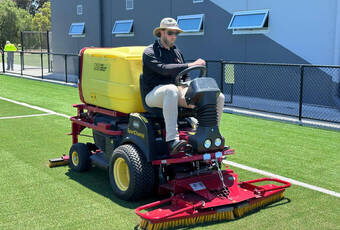

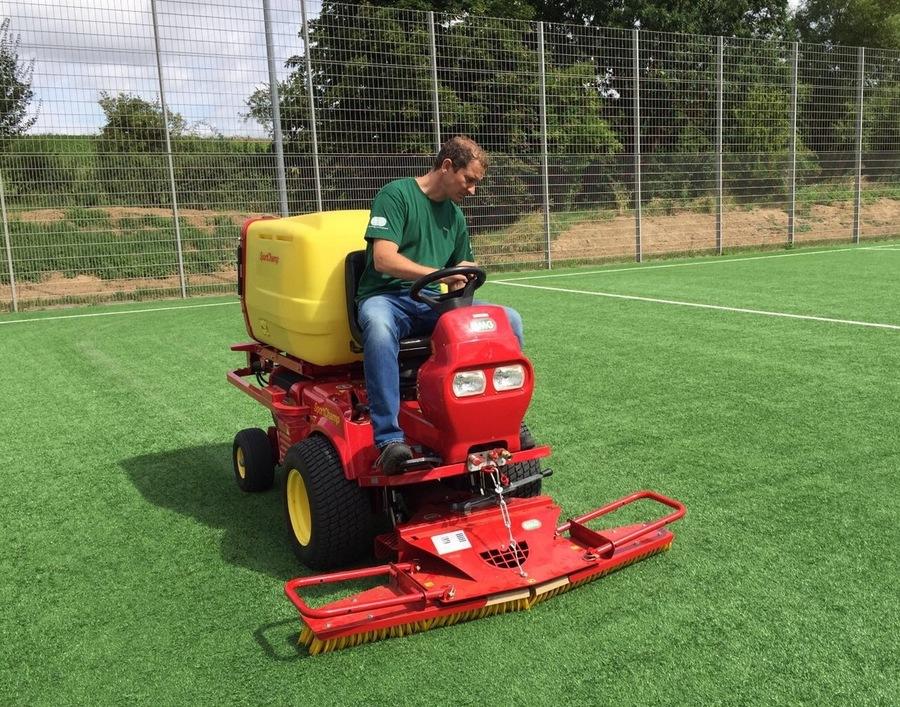

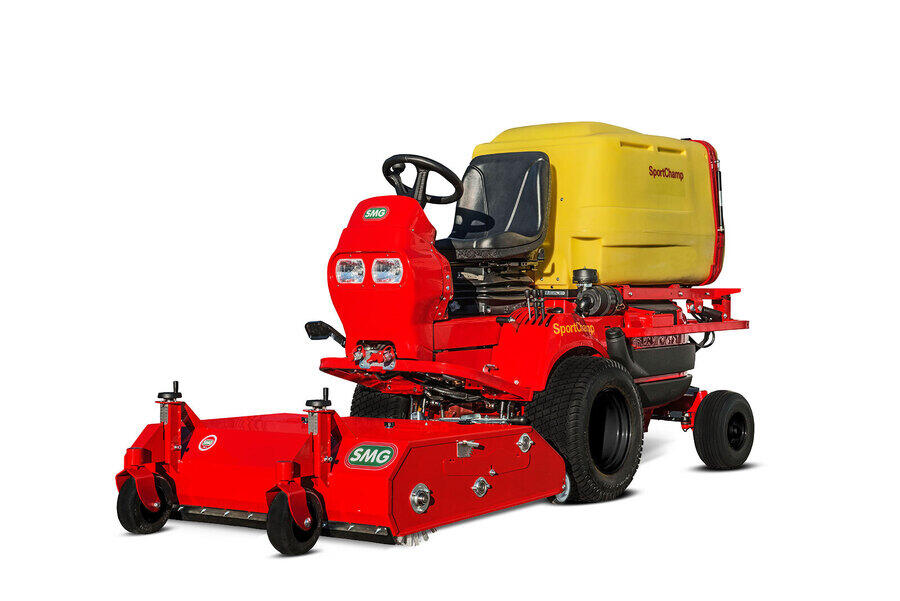

SportChamp SC2D
SportChamp - Maintenance
8800071

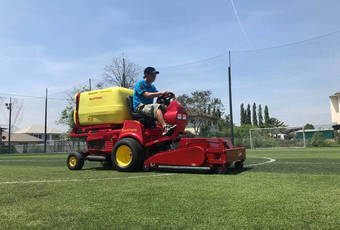

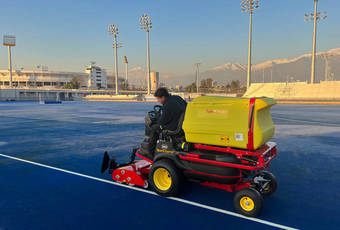

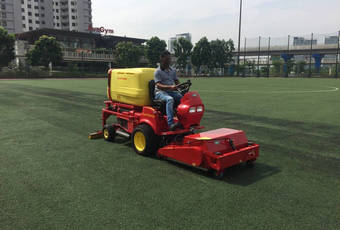

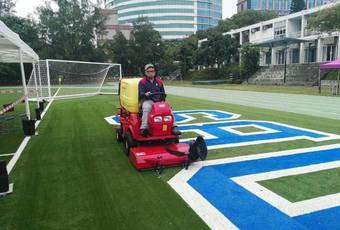

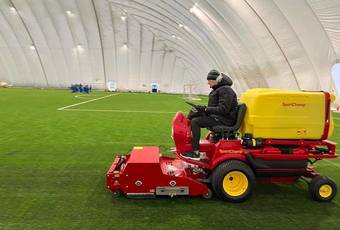

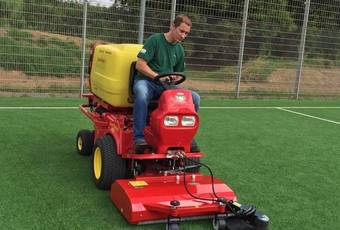

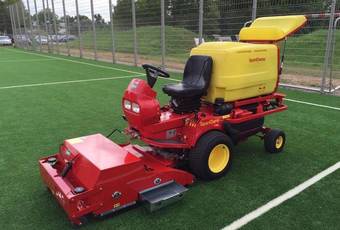

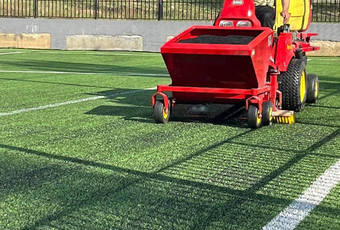

Multifunctional ride-on machine for contractors for the advanced maintenance of artificial turf.
The SportChamp, the leading machine in the world market, is the solution for the maintenance of different synthetic sport surfaces within a sports facility. By the use of different attachments all synthetic sport surfaces can be cleaned and maintained according to the manufacturer's instructions and beyond that for an efficient and economic upkeep of the surface.

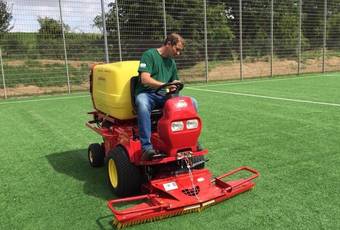

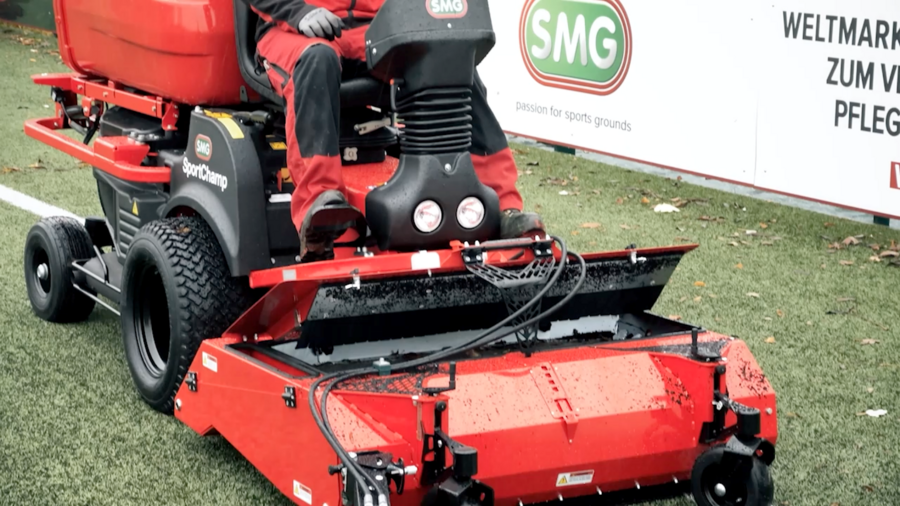

During weekly use the SportChamp levels the infill material of filled surfaces with the rotary brush and eliminates contamination at the same time. Thus the infill material will be loosened and the fibre will be put upright again.

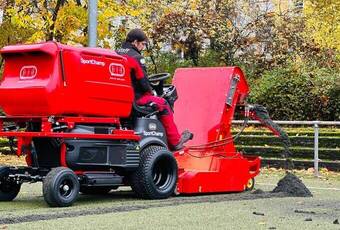

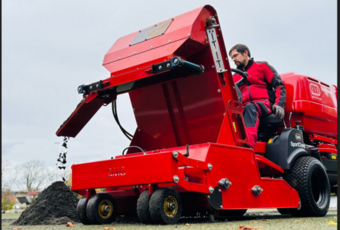

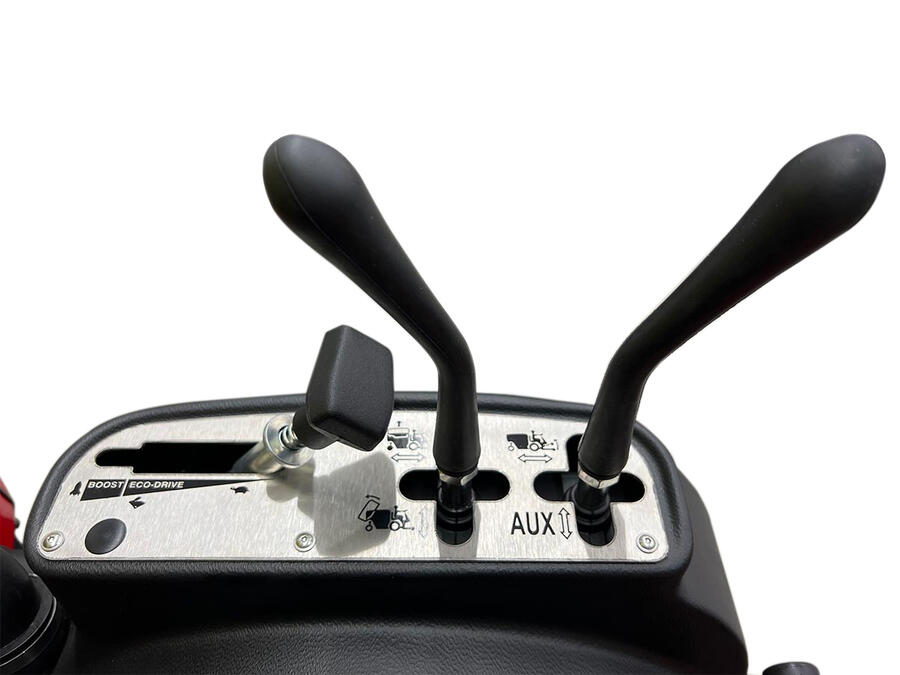

Fibres lying loosely on the turf and even well-rehearsed fine dirt will be vacuumed in a large-volume filter box during the surface maintenance by the proven extraction system. The filter unit is controlled automatically and cleaned within minutes. It will be evacuated - controlled hydraulically - quite conveniently while sitting on the driver seat.

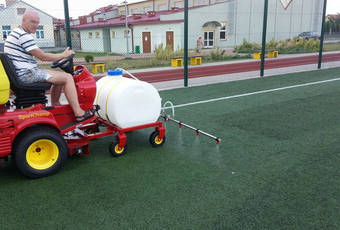

Numerous attachments facilitate and expedite the necessary maintenance tasks. The range includes attachments for the winter services and the refilling of infill material, for the removal of leaves, the loosening of extreme compaction and the spraying of care products. The application area of the SportChamp is enlarged by additional attachments for non-infilled artificial turf, synthetic sports surfaces or sidewalks. Thereby it is the multifunctional care and maintenance machine for your sports facility.
Beside the classic, weekly maintenance tasks the SMG SportChamp can additionally carry out the annual basic and deep cleaning.
SMG dust filters installed by SMG comply with DIN EN60335-2-69/dust class "M" and EN779 "F8" or "F9". Dust with a high proportion of fines as well as granulate/fibre abrasion (microplastics) are extracted via the powerful turbine and bound in the filter.

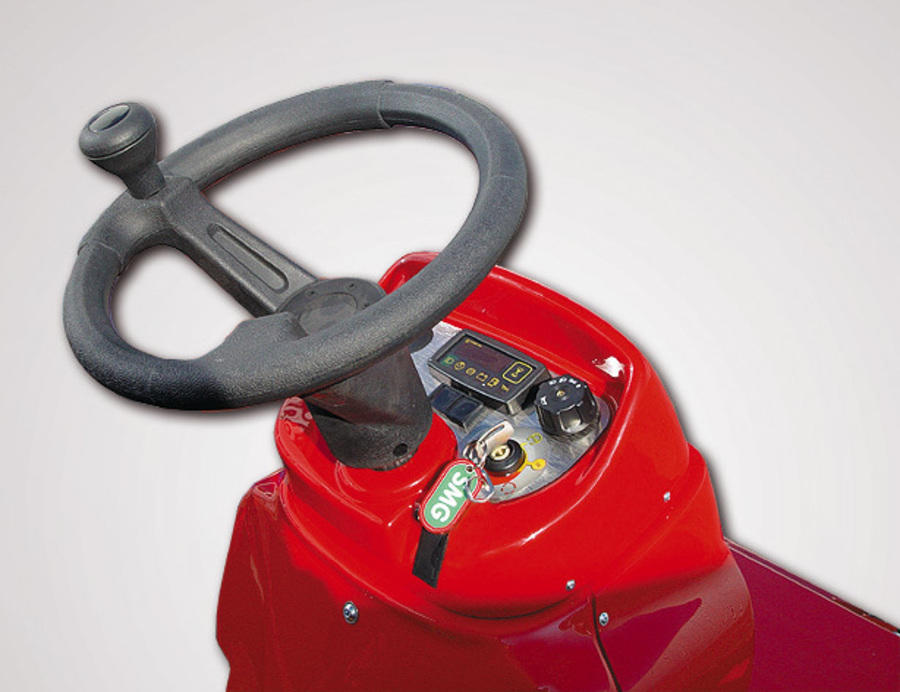

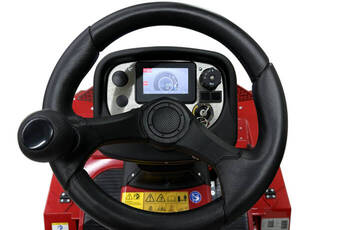

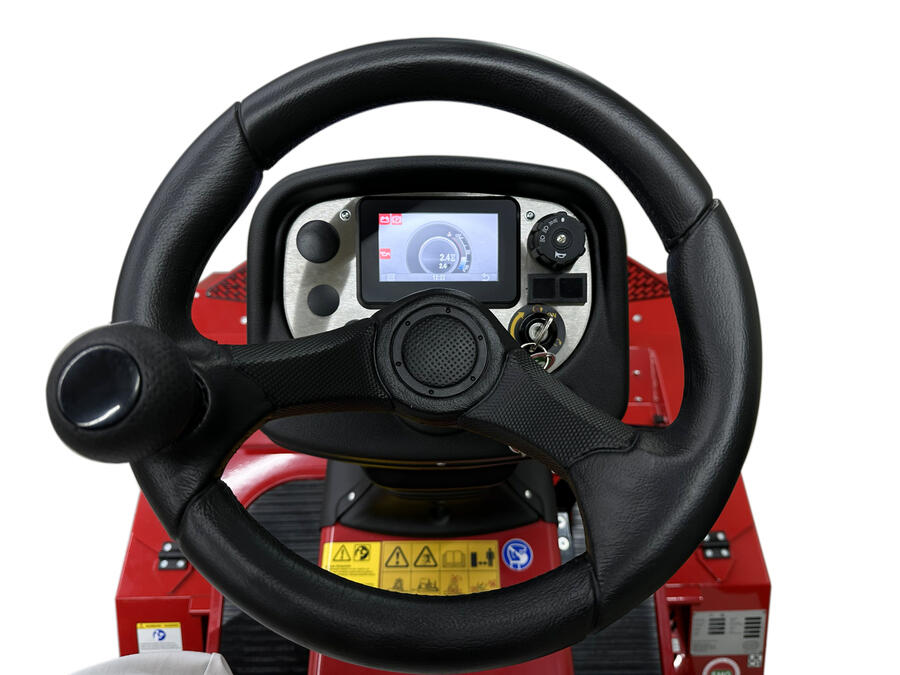

Display with operating hours for maintenance intervals including errorcode notification for monitoring all functions.

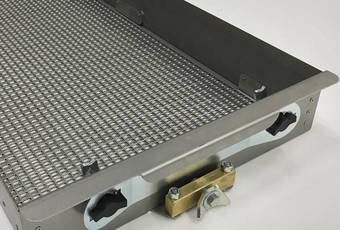

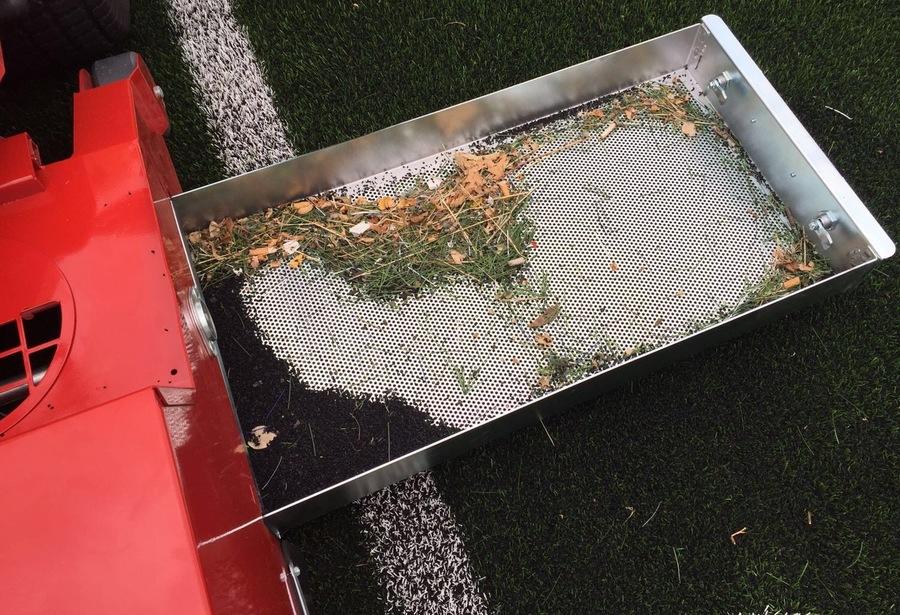

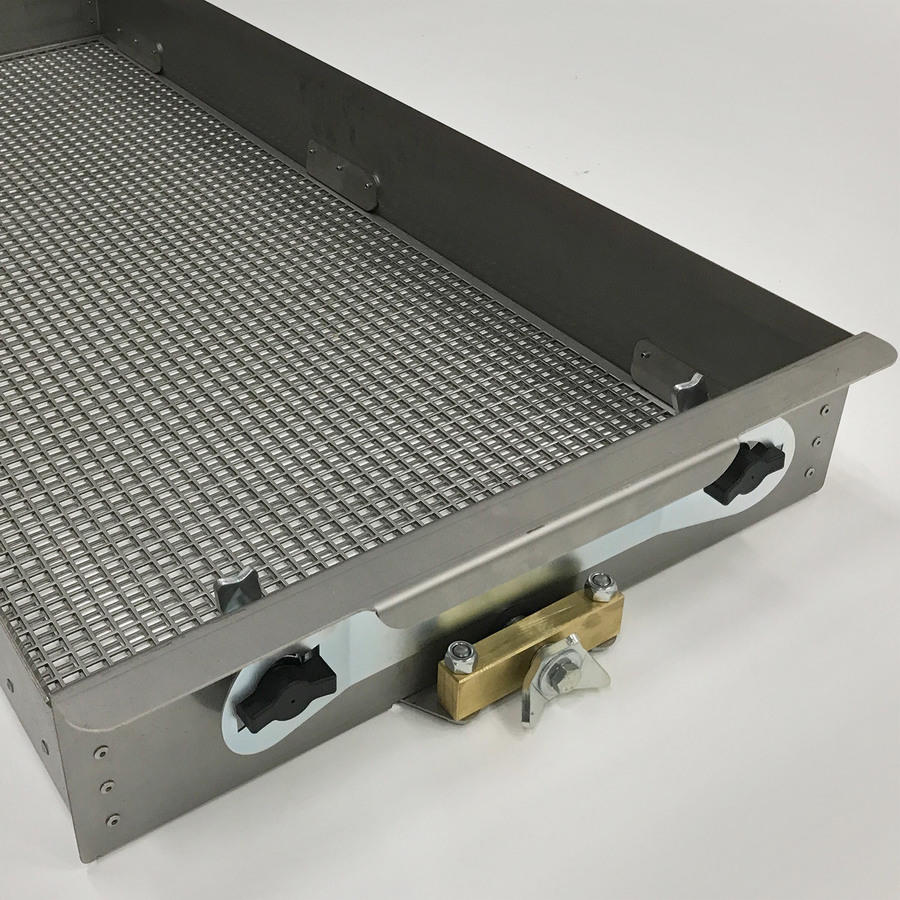

Vibrator sieve adjustable from 4 - 10 mm, cleans dirt out of the infill material with simultaneous repatriation.

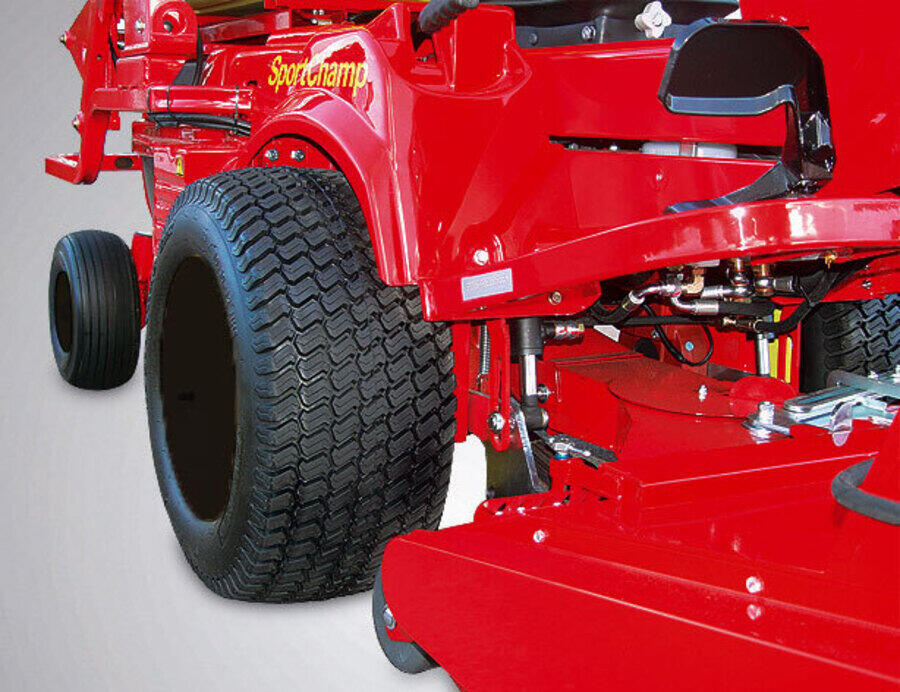

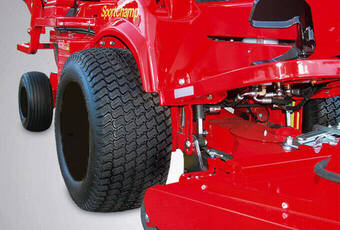

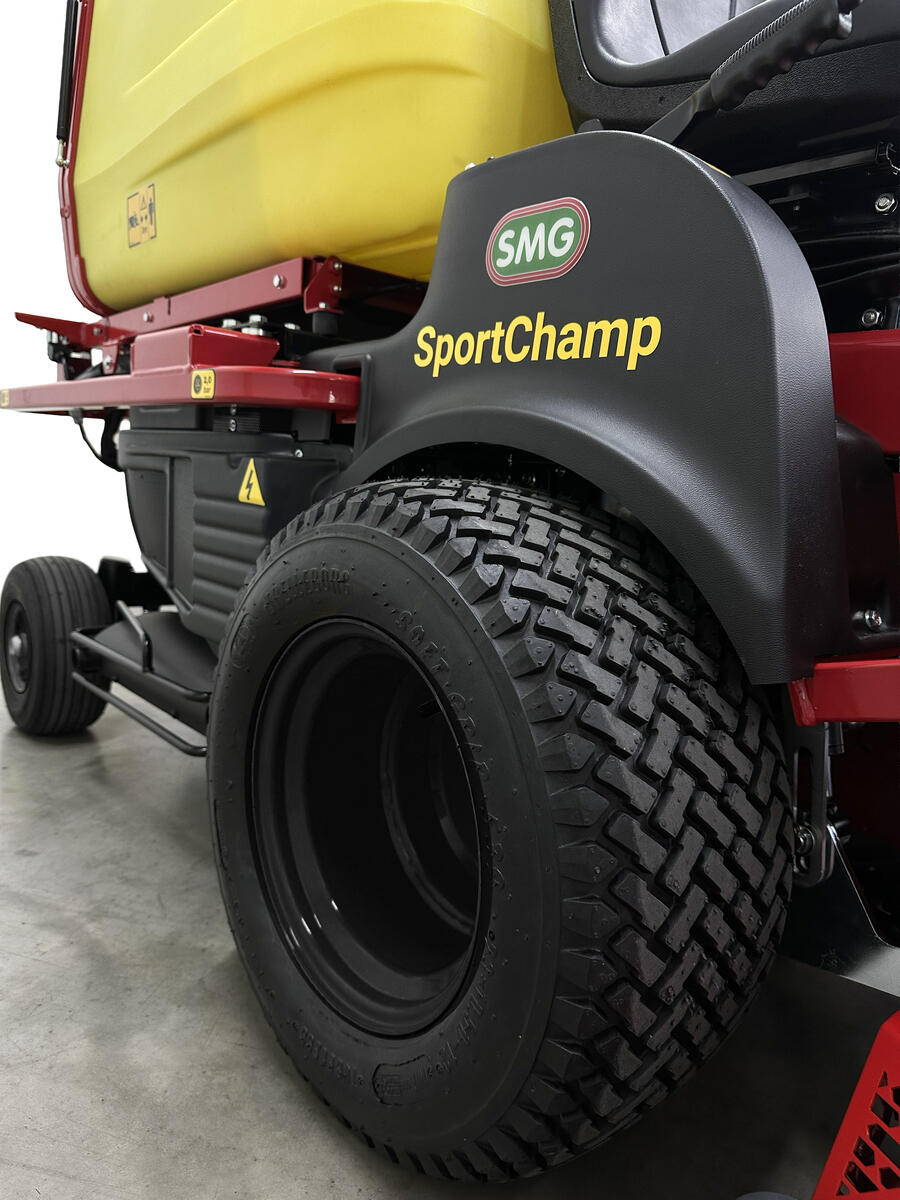

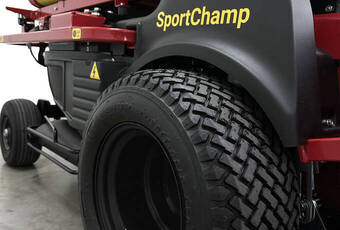

Tires especially for use on turf ensure low pressure on the ground.
Technical information:
Drive | 3-cylinder diesel engine, water-cooled / 16,1 kW (21,9 HP) |
---|---|

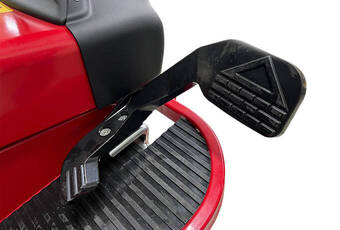

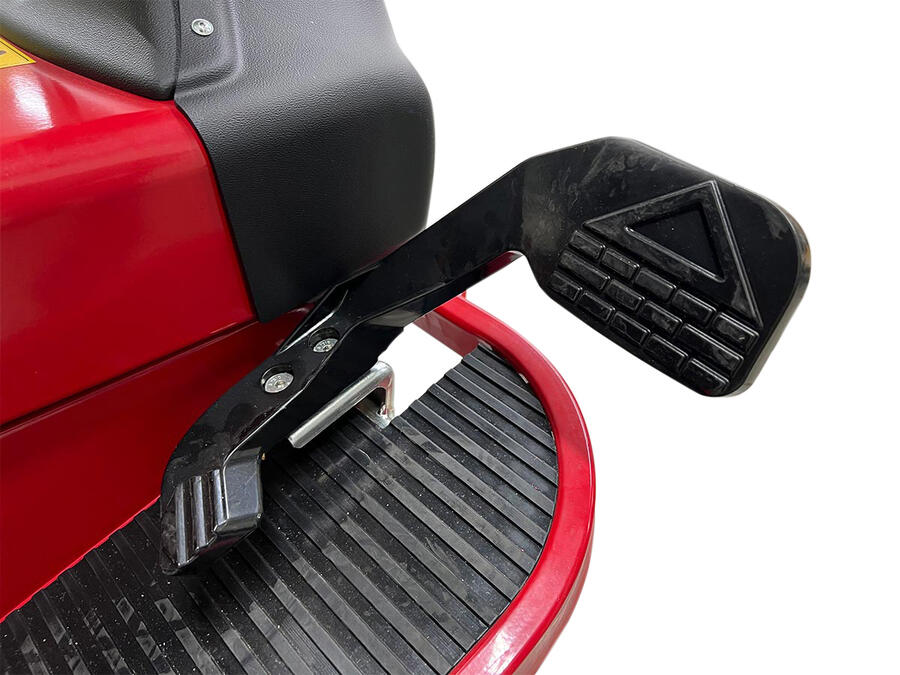

Traction drive | hydrostatic, driving speed up to 10 km/h
|

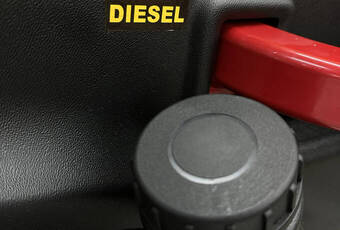

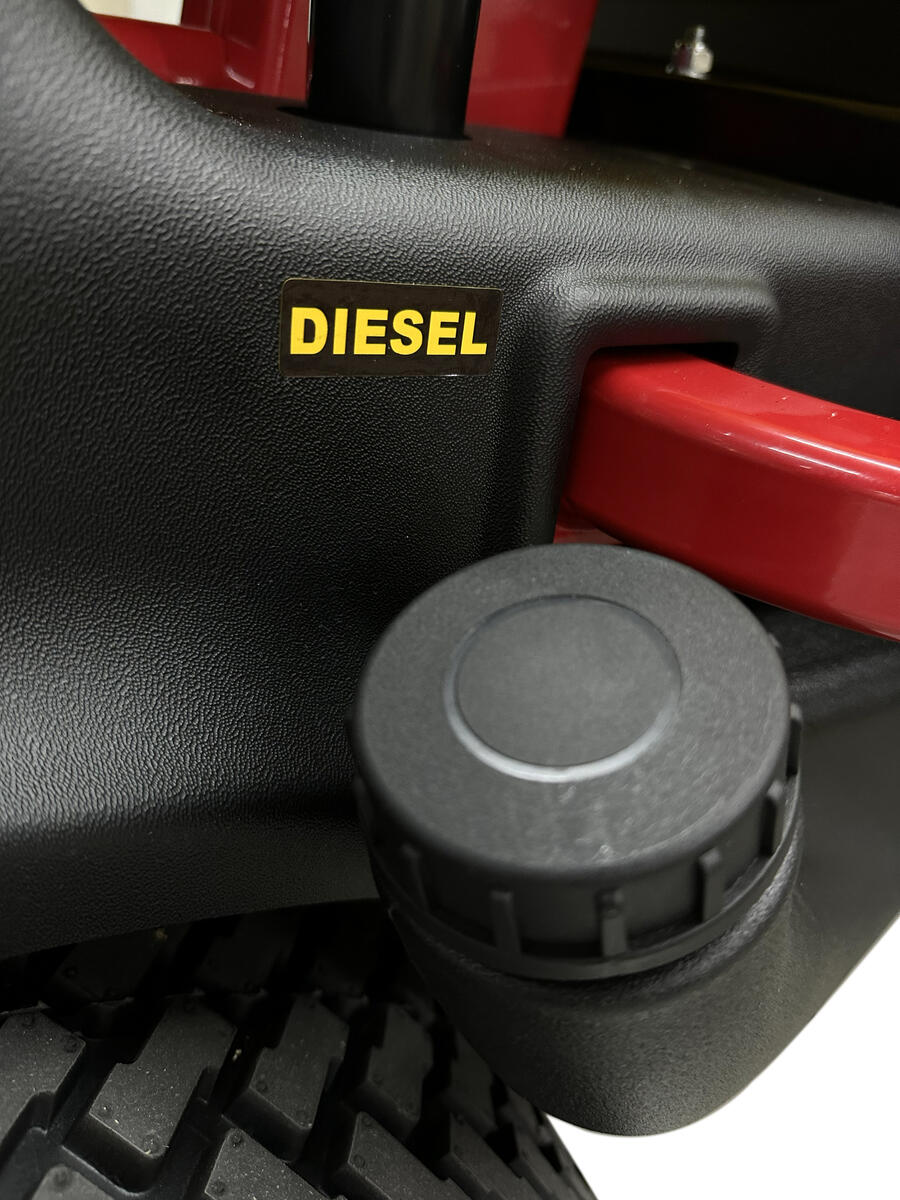

Capacity of tank | approx. 16 litres |
Brush working width | depending on brush: 900 - 1,600 mm |
Weight | 630 kg |
Dimensions | L 2,300 x W 1,140 x H 1,540 mm |
Subject to technical changes
Catalog as PDF and flip page catalog:
View flip catalog online: The Art of Artificial Turf Maintenance View flip catalog online: Turf / MaintenanceDownloads/Links:
Rotating brush SC3 Test report: IST Consulting GmbH FIFA Step Guide Maintenance FIFA Maintenance Research Newsletter: SportChamp seriesitem no. 6239163
Fusion of the 3 Brush-Systems “SMG opposed brush“, “SMG rotating brush“ and “SMG rotating brush with auger” for maintaining and cleaning of Track & Turf.
Working width: 1.000 mm
Weight: 150 kg
Dimensions: L 1,350 x W 1,260 x H 450 mm
item no. 6220935
item no. 6220935 + 6223425
or with additional brush available
item no. 6220935 + 6221475
item no. 6400132
item no. 6400177
item no. 6400027
item no. 6400112
Magnet bar ML1500 for artificial turf maintenance.
item no. 6224217
Oscillation brush OS1100 to brush sand/rubber/organic infilling material into artificial grass.
The working width is 1,100 mm.
item no. 6400125
item no. 6400093
item no. 6400012
item no. 6400039
item no. 6400025
item no. 6400133
item no. 6400167
item no. 6400029
item no. 6400017
item no. 6211213
item no. 6223272
Attachment for loosening the artificial turf.
Working width: 900 mm
Ground driven, tow-behind device for the cleaning and care of artificial turf.
Ground driven, tow-behind device for the cleaning and care of artificial turf.
Tow-behind device for loosening and brushing of artificial turf.
