Spreader SP1300 NEW

Spreader - Filling

Compile your individual product catalog and have it sent to you by e-mail.

Request
Spreader
Other products in the series
Item number/s:

6400364

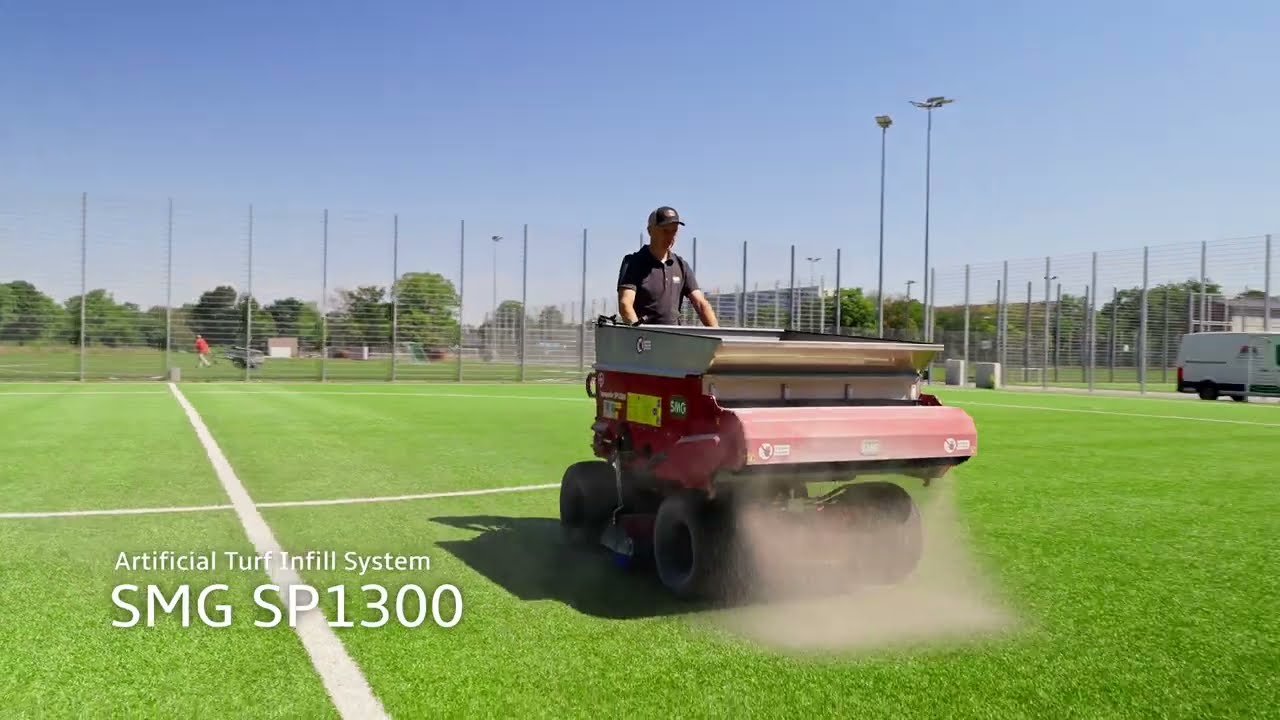

Self-propelled machine with stand-on operator platform, all-wheel drive, and all-wheel steering.

The SP1300 spreader is the ideal solution for applying sand, rubber, and organic infill materials to artificial turf systems. It combines high efficiency with a compact design and is powered by a 22 HP Honda petrol engine.

Thanks to its compact design, the SP1300 is perfectly suited for filling smaller areas such as padel courts, tennis courts, or futsal courts, but is also highly capable on larger fields. It impresses with a driving and working speed of up to 11 km/h.

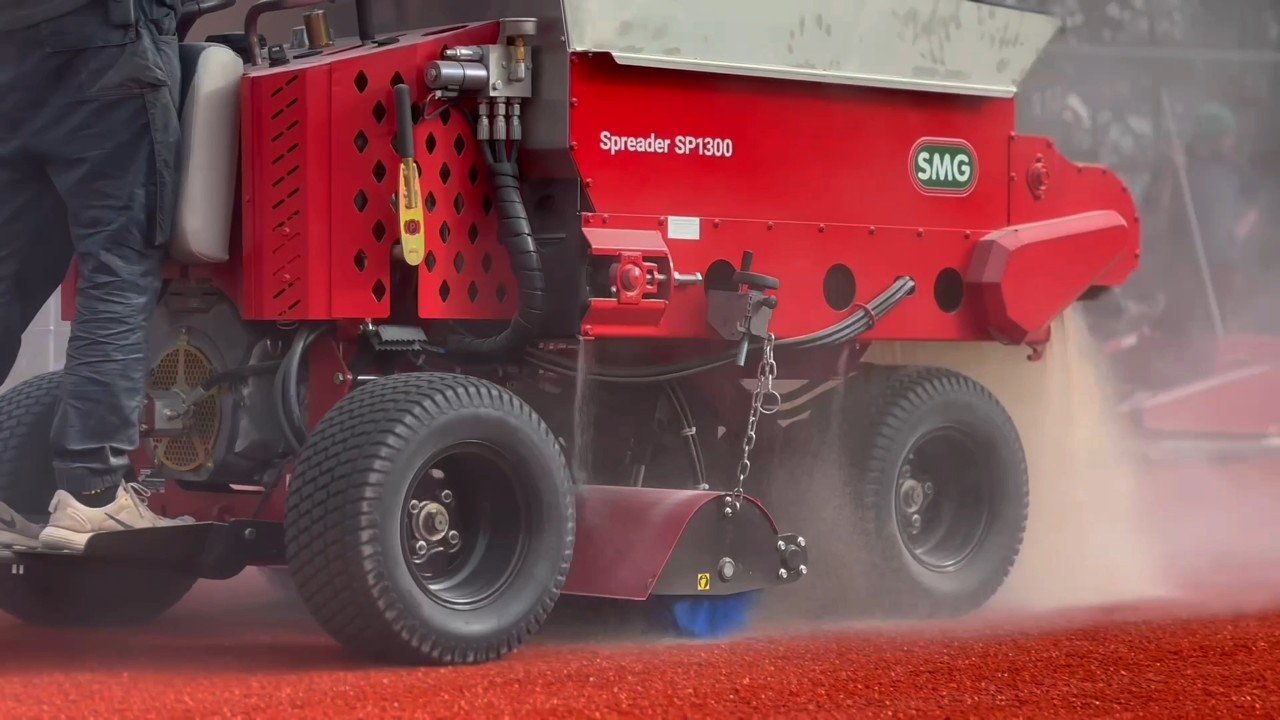

The working width of 1,300 mm and the integrated rotary brush ensure even distribution of the material and effective incorporation into the artificial turf. A slide control allows precise adjustment of the spreading quantity. Since the belt speed is coupled with the hydrostatic drive, the spreading amount is proportional to the driving speed, ensuring an uniform and efficient spreading result. The four-wheel drive and steering system with four individually driven wheels provides exceptional maneuverability and enables precise edge work. The steering system and all-wheel drive reliably prevent surface deformation during the filling process. Thanks to its special design and low-pressure tires, the SP1300 operates with minimal ground pressure, protecting both the unfilled turf fibers and the subbase.

Spreader SP1300
small field large field Refill Soccer Combustion engine
Detail views
Spreader SP1300
Spreader SP1300
Dual-Steer Technology

Turf- and base-friendly.

Spreader SP1300 - Dosing handle for manual adjustment of the spreading rate.
Precise

Dosing handle for manual adjustment of the spreading rate.

Spreader SP1300 - Spreading brush for even distribution of the infill materials.
Effective

Spreading brush for even distribution of the infill materials.

Spreader SP1300 - Rotary Brush to brush the fibre and simultaneously brushing in the infill material.
Rotary Brush

To brush the fibre and simultaneously brushing in the infill material.

Spreader SP1300 - Ride-along stand platform.
Ergonomic

Ride-along stand platform.

Spreader SP1300 - Conveyor belt for an uniform and efficient spreading result.
Conveyor belt

For an uniform and efficient spreading result.

Spreader SP1300 - Clearly arranged control elements.
User-friendly

Clearly arranged control elements.

Spreader SP1300 - Four large-volume turf tires for minimal surface pressure.
Light-footed

Four large-volume turf tires for minimal surface pressure.

Technical information:

Spreading width

1,300 mm

Max. filling weight / Container volume

680 kg / 0.77 m³

Drive

2-cylinder Honda petrol engine / 16.5 kW (22 HP)

Weight

635 kg

Dimensions

L 1,930 x W 1,400 x H 1,270 mm

Subject to technical changes
