TurfSoft
Other products in the series
Item number/s:

6242255

Machine for the cleaning and care of artificial turf.

The TurfSoft is a solution as simple as effective for the joy in the game and maintaining the value of small areas with non-infilled and infilled surfaces (sand and sand/rubber). Using this machine you can eliminate suspended particles, abrasion and dirt particles from the top surfaces. The manoeuvrable TurfSoft is ideal for areas with little space to move, where stairs, steps and narrow doorways complicate the access to the artificial turf pitches.

The TurfSoft TS3 DC is equipped with a electric motor which controls three functions at the same time: the vibrating function of the sieve, the drive of the turbine and the rotation of the cleaning brush. With light pressure on the steering arm the brush steps into the turf and through the emerging feed it causes an easy and energy-saving operation.

You can easily clean the filter by turning the handwheel.

The TurfSoft TS3 is developed for the cleaning of infilled artificial turf pitches along boards, fences or corner blocks. Equipped with a hinged side broom the TurfSoft TS3 eliminates the dirt even in areas which are difficult to access. If the side broom is not used, it can be easily folded.

SMG dust filters installed by SMG comply with DIN EN60335-2-69/dust class "M" and EN779 "F8" or "F9". Dust with a high proportion of fines as well as granulate/fibre abrasion (microplastics) are extracted via the
powerful turbine and bound in the filter.

TurfSoft TS3 DC
small field Control of lines/seams and the penalty point Surface cleaning Recirculation of filler material Brushing up the artificial grass fiber Loosen up Deep cleaning Filter Soccer Tennis Battery operation
Detail views
TurfSoft TS3 DC

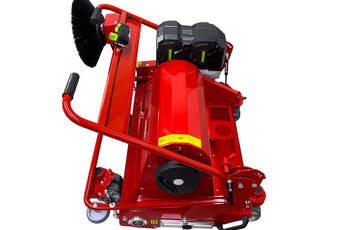

TurfSoft TS3 DC - Foldable steering arm for easy transport and storing in small places.
Compact

Foldable steering arm for easy transport and storing in small places.

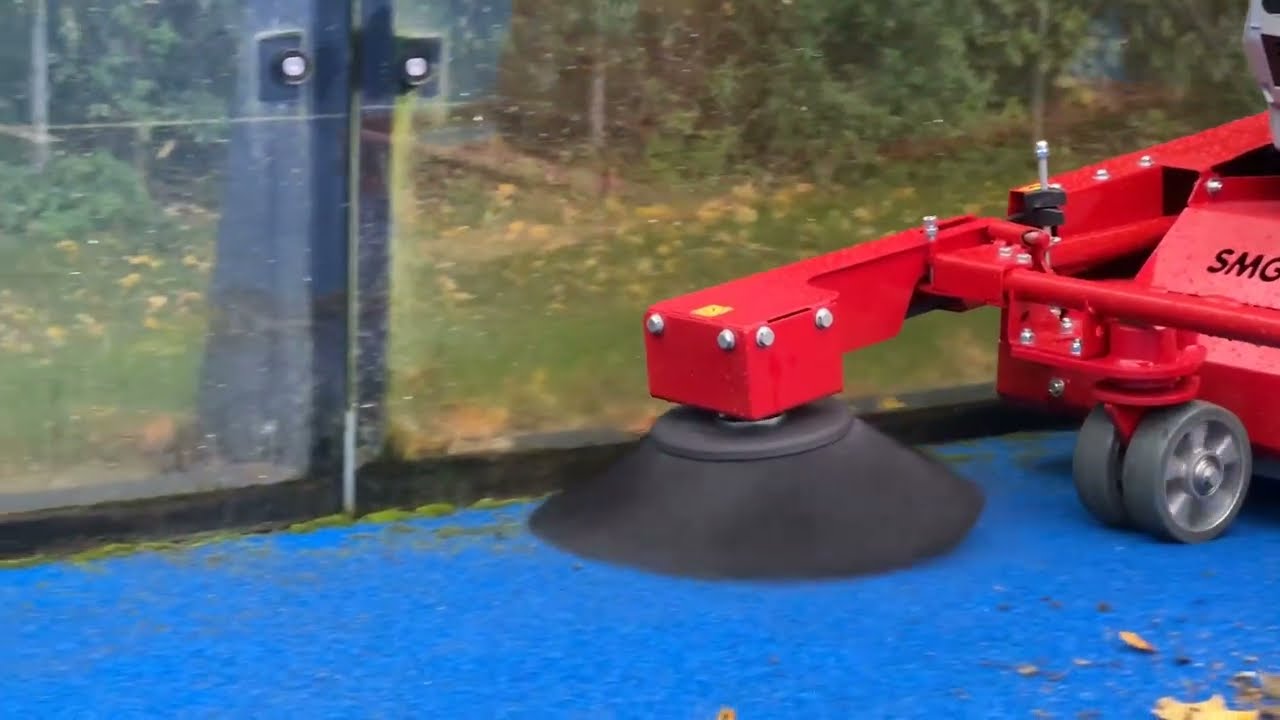

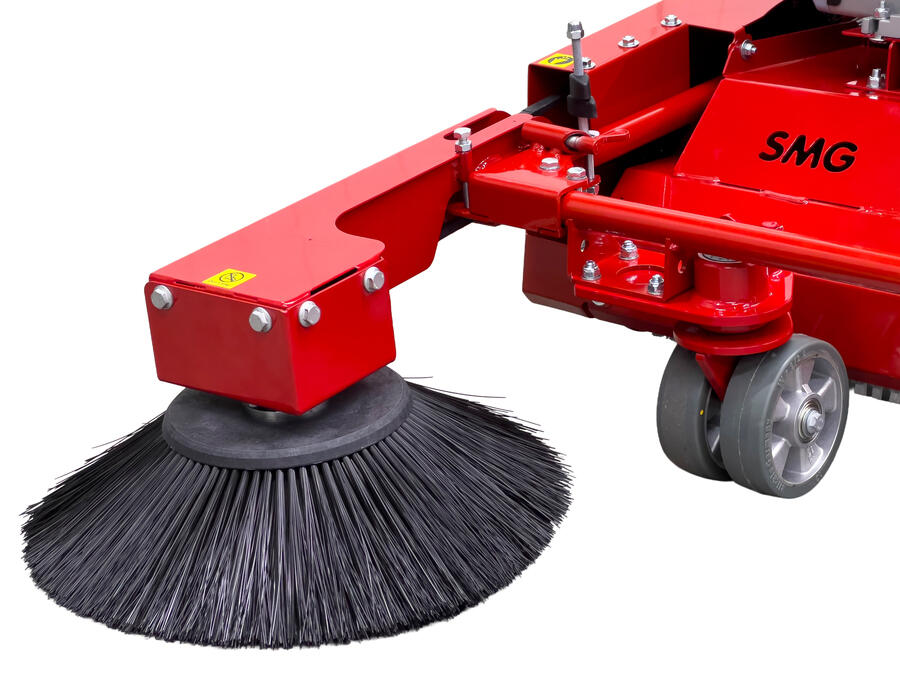

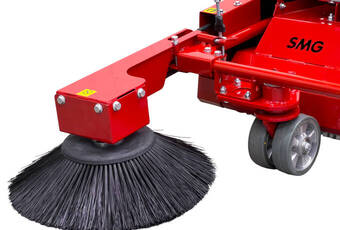

TurfSoft TS3 DC - Equipped with a hinged side broom the TurfSoft TS3 DC eliminates the dirt even in areas which are difficult to access. If the side broom is not used, it can be easily folded.
Side broom

Equipped with a hinged side broom the TurfSoft TS3 eliminates the dirt even in areas which are difficult to access. If the side broom is not used, it can be easily folded.

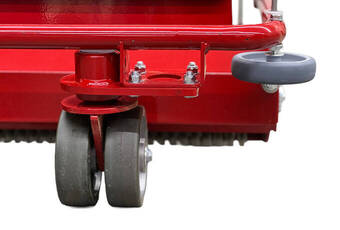

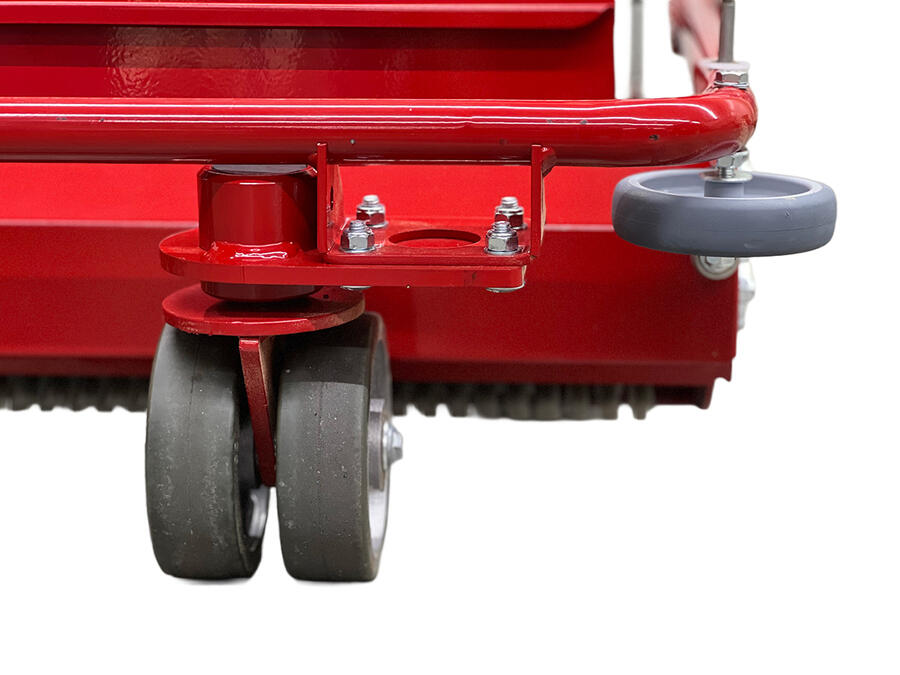

TurfSoft TS3 DC - Side wheel to avoid collisions on walls.
Safety

Side wheel to avoid collisions on walls.

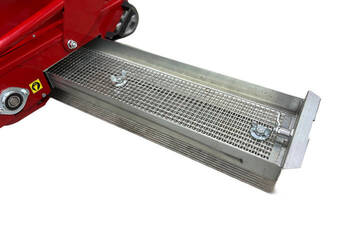

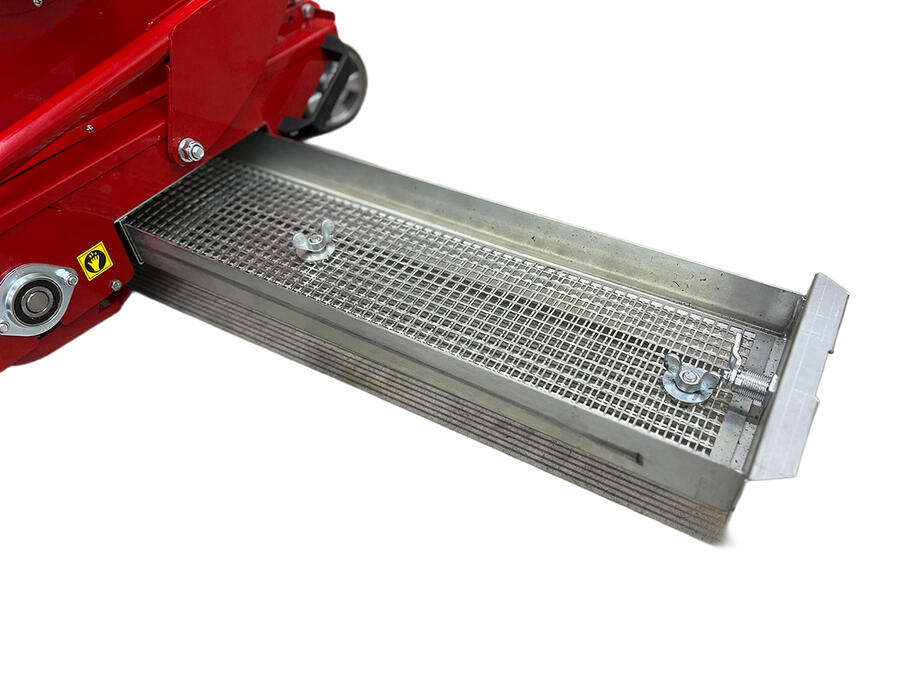

TurfSoft TS3 DC - Extractable filter sieve different sieve sizes available.
Smooth adjustable

Extractable filter sieve different sieve sizes available.

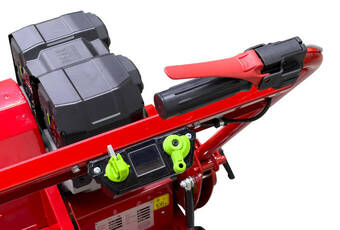

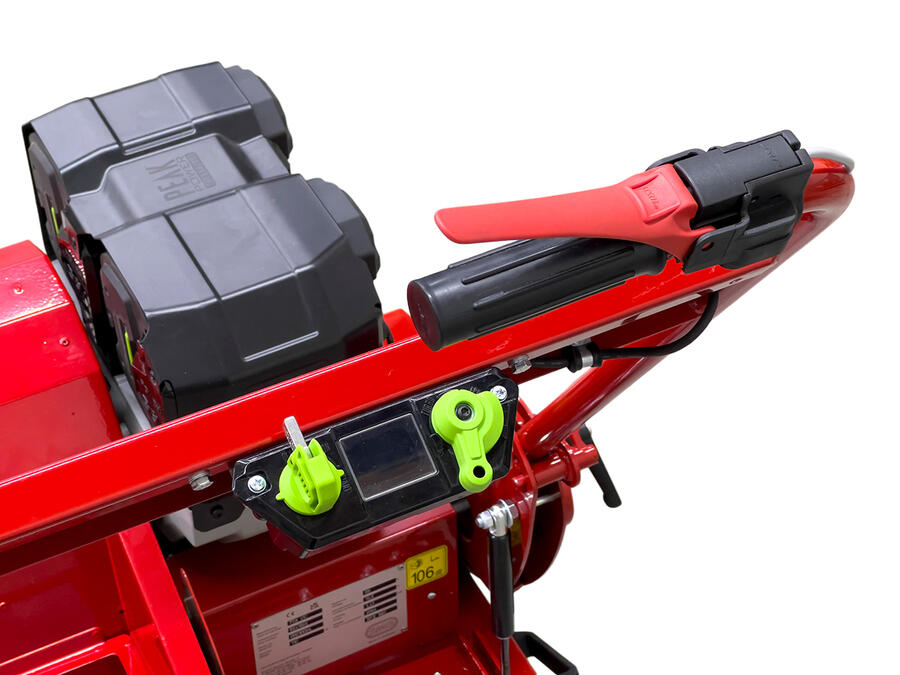

TurfSoft TS3 DC - Ergonomically arranged operating controls.
Easy handling

Ergonomically arranged operating controls.

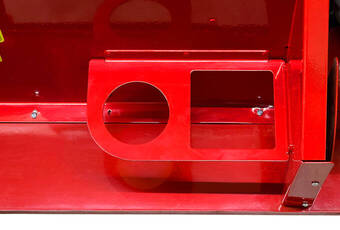

TurfSoft TS3 DC - Cup holder and bracket for tools.
Comfort

Cup holder and bracket for tools.

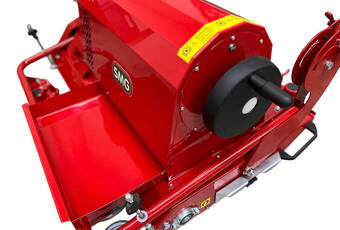

TurfSoft TS3 DC - Dust filer comply with DIN EN60335-2-69/dust class “M” and EN779 “F8” or “F9”.
SMG dust filter

Dust filer comply with DIN EN60335-2-69/dust class “M” and EN779 “F8” or “F9”.

TurfSoft TS3 DC - 3.4 kW (4.7 HP) electric engine.
Powerful

3.4 kW (4.7 HP) electric engine.

Technical information:

Drive

Electric motor / 3,4 kW (4,7 HP)

Working width

800 mm

Filter box

permanent filter approx. 5 m²

Weight

112 kg

Dimensions

L 1,500 x W 1,120 x H 1,000 mm

Subject to technical changes

Videos
TurfSoft TS3 DC
TurfSoft TS3 DC
In action
TurfSoft TS3 DC
